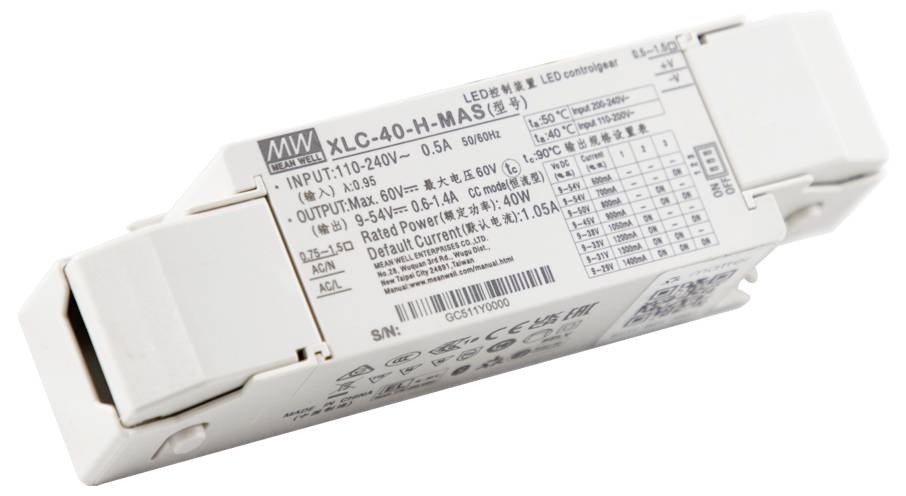

MEAN WELL LED converter 40 W 54 V dimmable Max. operating voltage: 300 V
EAN:
Part number:
Item no:
Product type
LED converter
Power
40 W
Connection
Spring-loaded terminal
Output voltage (max.)
54 V
Min. operating voltage
100 V
Datasheet (PDF)
Highlights & Details
- Meets the requirements of emergency lighting (EL)
- Minimum dimming value 0.5% mat over thread network , Matt 1.3 specification
- Output current can be set via DIP switch
- This text is machine translated.
Technical specifications
- Interfaces: Mat, push-DIMM
- Operation maintenance 50,000 h
- Min. Input voltage AC 100
- Max. Input voltage AC 305
- Product type
LED converter
- Operating voltage
230 V
- Operating voltage
100 - 300 V
40 W
- LED features
dimmable
- Connection
Spring-loaded terminal
Protection class II
- Min. temperature
+85 °C
- Max. temperature
-25 °C
- Dim
(L x W x H) 147 x 40 x 32 mm
- Height
32 mm
- Length
147 mm
- Width
40 mm
- Output voltage (max.)
54 V
- Output voltage (min.)
9 V
- Min. operating voltage
100 V
- Max. operating voltage
300 V
