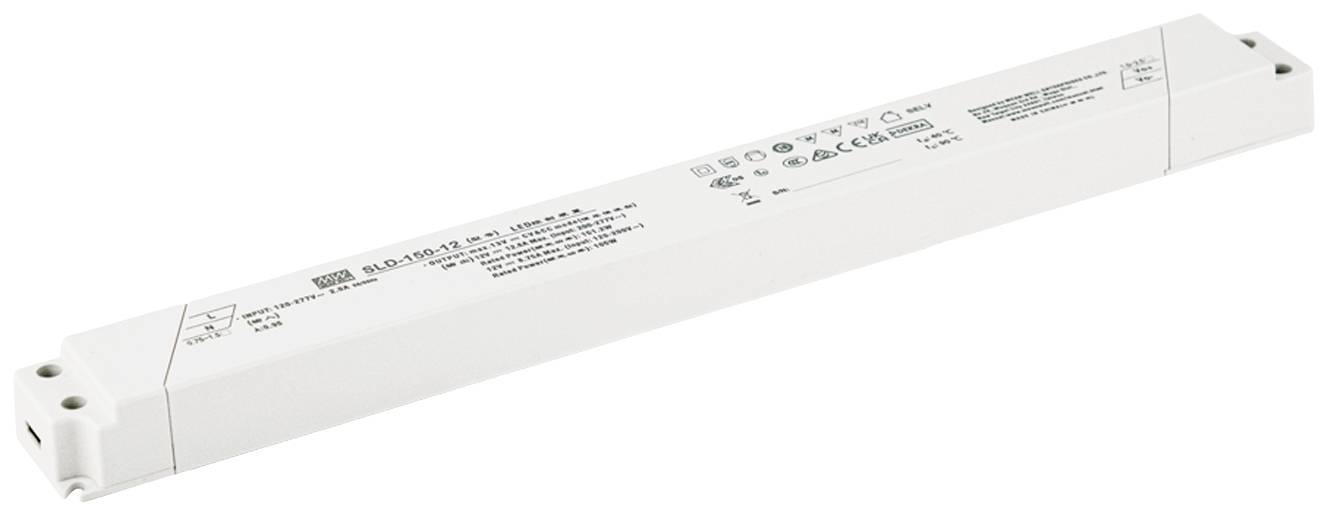

MEAN WELL LED driver 151.2 W 6.3 A not dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 32.76 / piece)
€ 32.76
plus VAT.
Only 2 Piece(s) available
Highlights & Details
LED SNT CASE 151.2W 24V 6.3A CV
- 6.3 A
Technical specifications
- Product type
LED driver
- Dim
(L x W x H) 330 x 35 x 22 mm
- Test mark
MM-Zeichen; SELV; DEKRA
- Max. output current
6.3 A
- Output current (max.) - rounded
6.3 A
- Operating voltage
24 V
- Protection class
II
- LED driver features
not dimmable
- Connection
Plug & Clip
- Max. power
151.2 W
- No. of outputs
1 x
- Input voltage (max.)
431 V DC
305 V AC
- Min. input voltage
170 V DC
120 V AC
- Weight
310 g
- Power range
151.2 W (max)
- Width
35 mm
- Height
22 mm
- Length
330 mm
- Max. temperature
+85 °C
- Min. temperature
-25 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2900955 MEAN WELL LED driver 151.2 W 6.3 A not dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900955 MEAN WELL LED driver 151.2 W 6.3 A not dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2900955 MEAN WELL LED driver 151.2 W 6.3 A not dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
