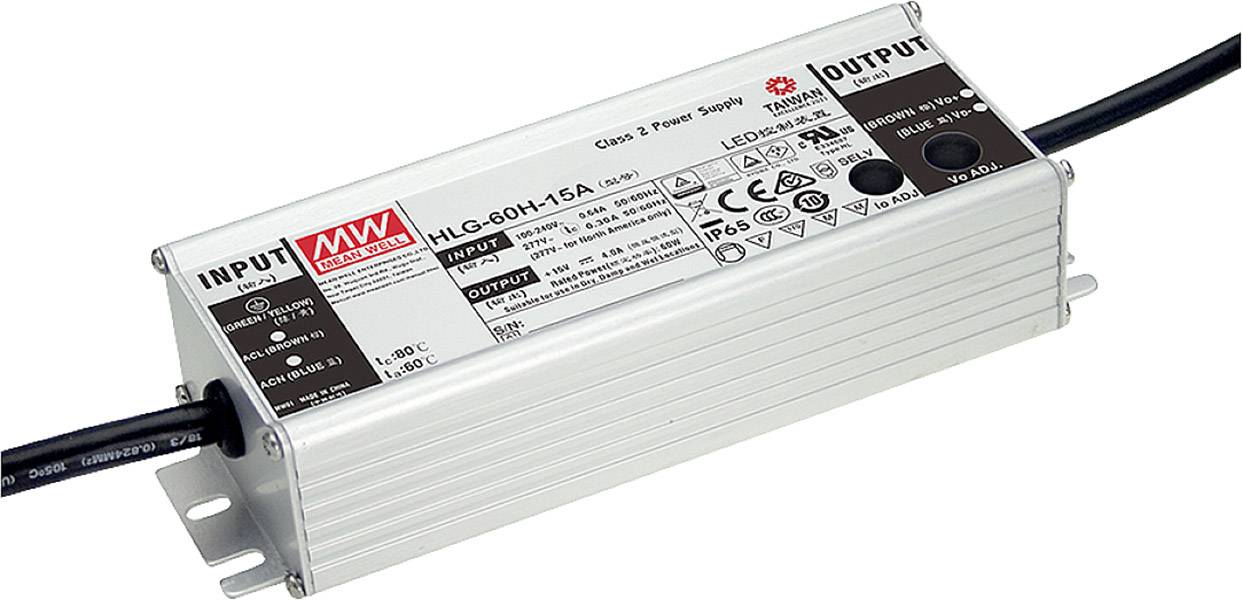

MEAN WELL LED driver Constant voltage, Constant current 60 W 2 A 30 V DC Suitable for flammable surfaces, Outdoor, Appro
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MEANWELL LED switched-mode power supply series HLG-60H Metal Case IP67 Single Output CV+CC (Mixed Mode) Power: 60W
- Constant voltage, Constant current
- 30 V DC
- 2 A
Technical specifications
- Mixed mode output (voltage stabilized/CV or current stabilized/CC)
- Depending on the connected LED illuminant (constant current or constant voltage), the fits
- DC output of the LED power supply, within the framework of the specified technical parameters of the data sheet, the load.
- Product type
LED driver
- Type
Constant voltage
Constant current
- Dim
(L x W x H) 171 x 61.5 x 36.8 mm
- Factory colour
Metal
- Output voltage (max.)
30 V DC
- Output voltage (min.)
30 V DC
- Test mark
MM, SELV, UL, TÜV, CB
- Max. output current
2 A
- Output current (max.) - rounded
2 A
- Operating voltage
230 V AC
115 V AC
- Protection class
II
- LED driver features
Suitable for flammable surfaces
Outdoor
Approved for use on furniture
PFC circuit
not dimmable
Surge protection
Overvoltage
IP67
- Connection
Open end cable
- Max. power
60 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
2 A
- Input voltage (max.)
305 V AC
431 V DC
- Min. input voltage
90 V AC
127 V DC
- Weight
730 g
- Power (min.)
60 W
- Power range
60 up to 60 W
- Type
Pulsed
- Width
61.5 mm
- Height
36.8 mm
- Length
171 mm
- Max. temperature
+80 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2237691 MEAN WELL LED driver Constant voltage, Constant current 60 W 2 A 30 V DC Suitable for flammable surfaces, Outdoor, Appro
User & Safety Instructions
User & Safety Instructions 2237691 MEAN WELL LED driver Constant voltage, Constant current 60 W 2 A 30 V DC Suitable for flammable surfaces, Outdoor, Appro
Warranty Terms
Warranty Terms 2237691 MEAN WELL LED driver Constant voltage, Constant current 60 W 2 A 30 V DC Suitable for flammable surfaces, Outdoor, Appro
Description
Features
- Voltage and current are preset permanently
- Constant current and constant voltage
- Independant operating device
- Wide-range input
- Metal housing
- Overload protection through current limitation, auto recovery
- Protected against short-circuit, overload, overvoltage, excess temperature
- Built-in PFC circuit
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
