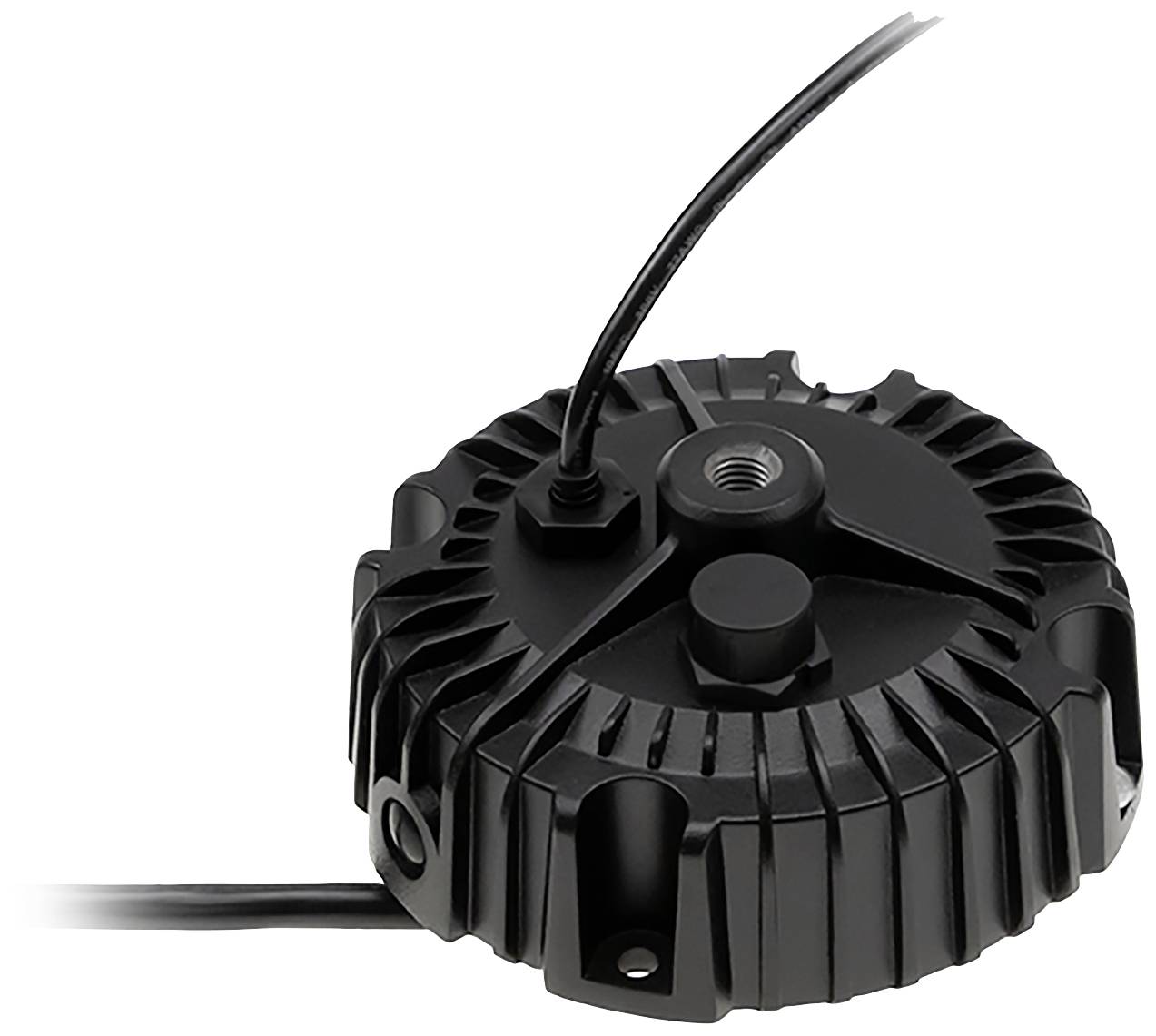

MEAN WELL LED transformer 100 W 1.75 A 27 - 52 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SNT IP67 100W 27-54V/0,875-2.78A CP
- 27 - 52 V
- 1.75 A
Technical specifications
- Product type
LED transformer
- Output voltage (max.)
52 V
- Output voltage (min.)
27 V
- Protection class
I
- LED driver features
dimmable
IP67
- Connection
Braid
- Max. power
100 W
- No. of outputs
1 x
- Output current (min.)
1.75 A
- Input voltage (max.)
431 V DC
305 V AC
- Min. input voltage
127 V DC
90 V AC
- Weight
800 g
- Power range
100 W (max)
- Width
0 mm
- Height
56 mm
- Length
0 mm
- Max. temperature
+85 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2900732 MEAN WELL LED transformer 100 W 1.75 A 27 - 52 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900732 MEAN WELL LED transformer 100 W 1.75 A 27 - 52 V dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2900732 MEAN WELL LED transformer 100 W 1.75 A 27 - 52 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
