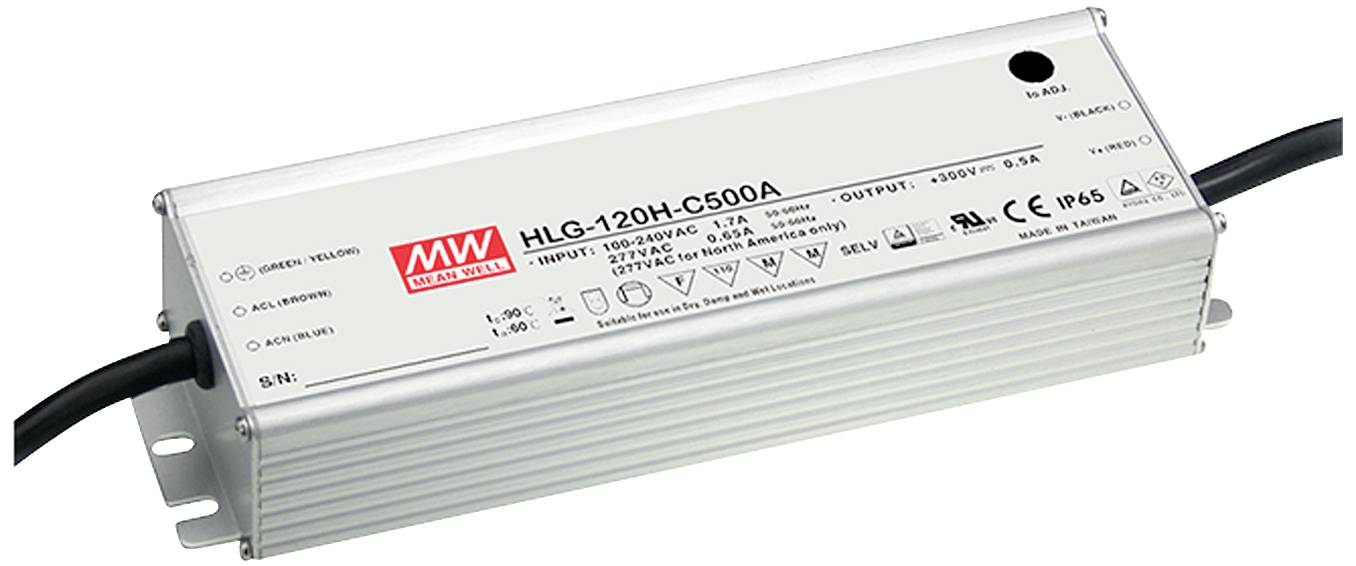

MEAN WELL LED transformer 150 W 500 mA 150 - 300 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SNT IP65 150W 150-300V/500mA cc dimming.
- 150 - 300 V
- 500 mA
Technical specifications
- Product type
LED transformer
- Dim
(L x W x H) 220 x 68 x 38.8 mm
- Output voltage (max.)
300 V
- Output voltage (min.)
150 V
- Test mark
MM-Zeichen
- Max. output current
500 mA
- Output current (max.) - rounded
500 mA
- Protection class
I
- LED driver features
dimmable
IP67
- Connection
Braid
- Max. power
150 W
- No. of outputs
1 x
- Input voltage (max.)
431 V DC
305 V AC
- Min. input voltage
127 V DC
90 V AC
- Weight
1040 g
- Power range
150 W (max)
- Width
68 mm
- Height
38.8 mm
- Length
220 mm
- Max. temperature
+90 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2900710 MEAN WELL LED transformer 150 W 500 mA 150 - 300 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900710 MEAN WELL LED transformer 150 W 500 mA 150 - 300 V dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2900710 MEAN WELL LED transformer 150 W 500 mA 150 - 300 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
