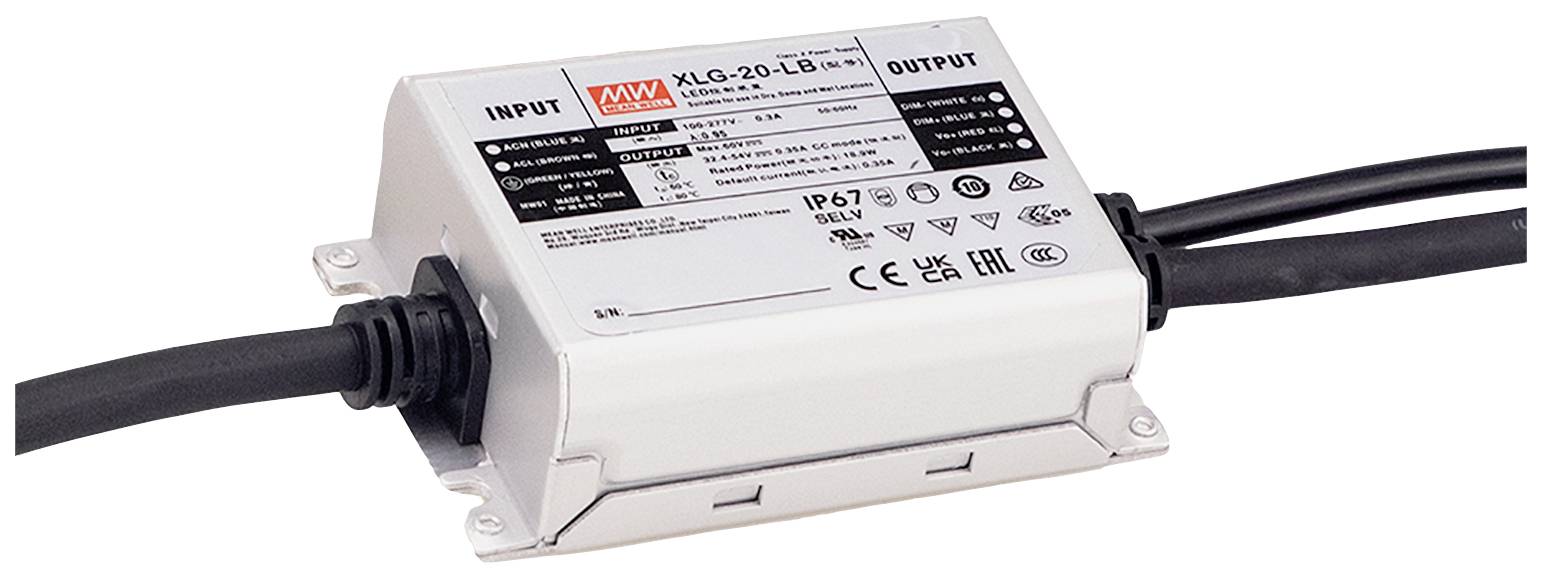

MEAN WELL LED transformer 18.9 W 350 mA 32.4 - 54 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED-SNT 18.9W 32.4-54V 0.35A CC
- 32.4 - 54 V
- 350 mA
Technical specifications
- Product type
LED transformer
- Dim
(L x W x H) 95 x 63 x 30 mm
- Output voltage (max.)
54 V
- Output voltage (min.)
32.4 V
- Test mark
MM-Zeichen; SELV
- Max. output current
350 mA
- Output current (max.) - rounded
350 mA
- Protection class
I
- LED driver features
dimmable
IP67
- Connection
Braid
- Max. power
18.9 W
- No. of outputs
1 x
- Input voltage (max.)
305 V AC
- Min. input voltage
90 V AC
- Weight
350 g
- Power range
18.9 W (max)
- Width
63 mm
- Height
30 mm
- Length
95 mm
- Max. temperature
+80 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2900682 MEAN WELL LED transformer 18.9 W 350 mA 32.4 - 54 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900682 MEAN WELL LED transformer 18.9 W 350 mA 32.4 - 54 V dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2900682 MEAN WELL LED transformer 18.9 W 350 mA 32.4 - 54 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
