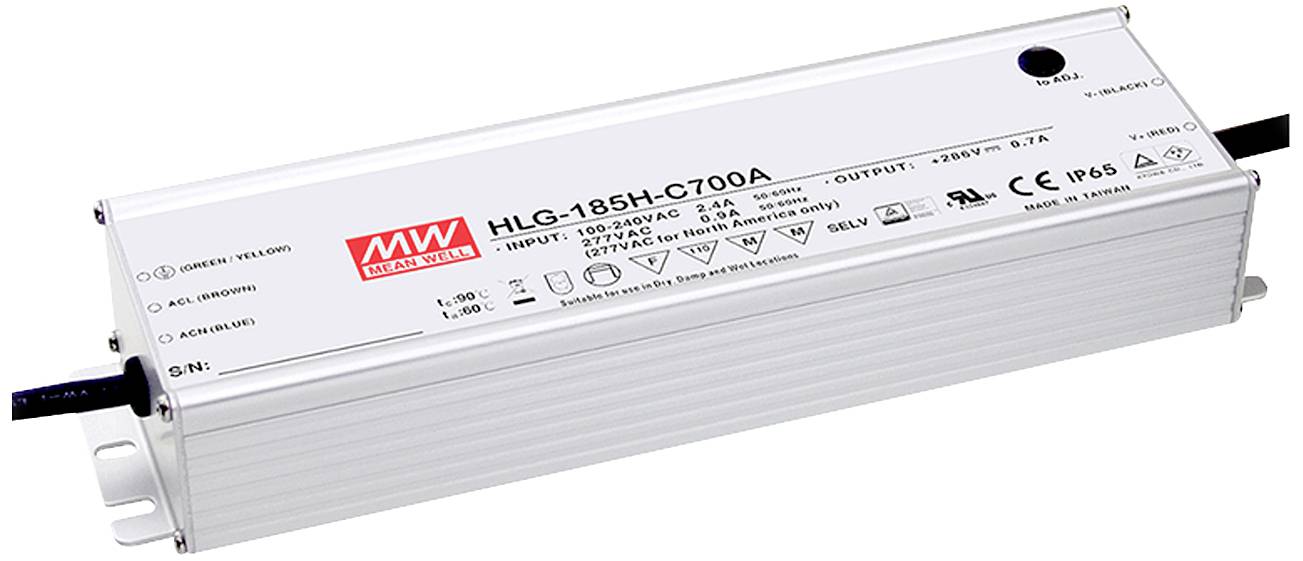

MEAN WELL LED transformer 200.2 W 700 mA 143 - 286 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SNT IP65 2.2W 143-286V/700mA CC DIMM.
- 143 - 286 V
- 700 mA
Technical specifications
- Product type
LED transformer
- Dim
(L x W x H) 228 x 68 x 38.8 mm
- Output voltage (max.)
286 V
- Output voltage (min.)
143 V
- Test mark
TÜV; MM-Zeichen
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- Protection class
I
- LED driver features
dimmable
IP67
- Connection
Braid
- Max. power
200.2 W
- No. of outputs
1 x
- Input voltage (max.)
431 V DC
305 V AC
- Min. input voltage
127 V DC
90 V AC
- Weight
1150 g
- Power range
200.2 W (max)
- Width
68 mm
- Height
38.8 mm
- Length
228 mm
- Max. temperature
+90 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2900724 MEAN WELL LED transformer 200.2 W 700 mA 143 - 286 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900724 MEAN WELL LED transformer 200.2 W 700 mA 143 - 286 V dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2900724 MEAN WELL LED transformer 200.2 W 700 mA 143 - 286 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
