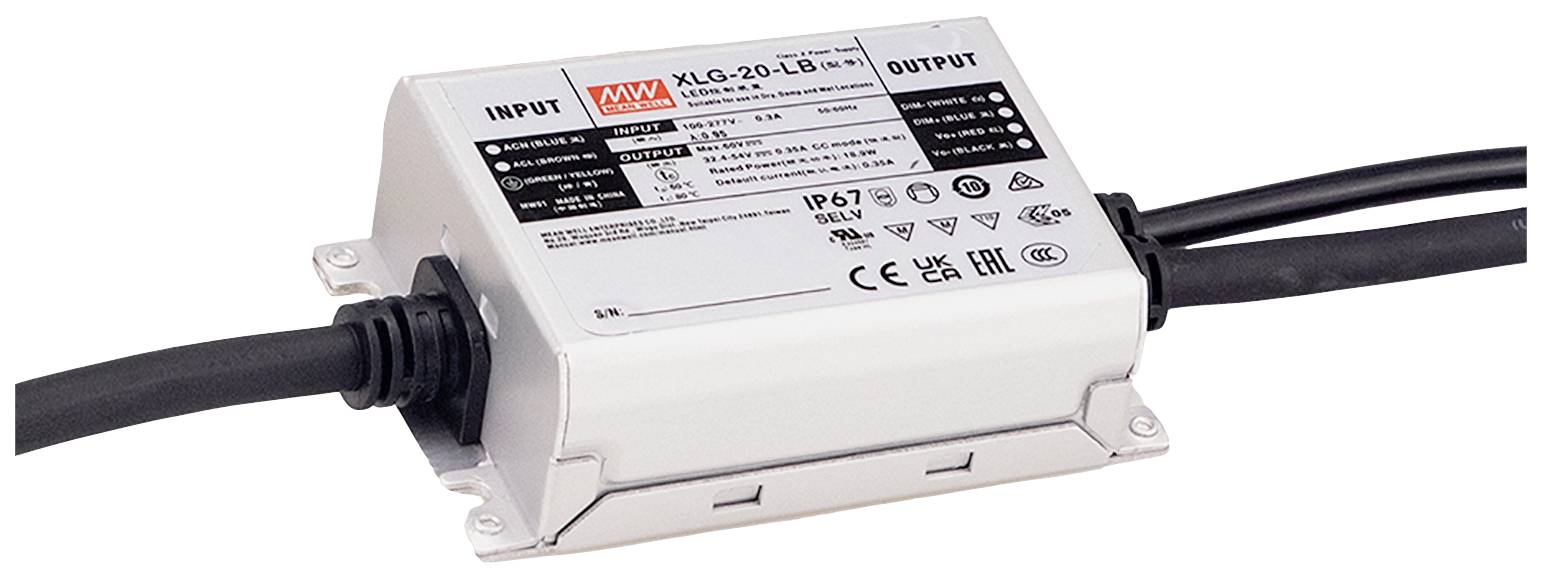

MEAN WELL LED transformer 21 W 500 mA 25.2 - 42 V not dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED-SNT 21W 25.2-42V 0.5A CC
- 25.2 - 42 V
- 500 mA
Technical specifications
- Product type
LED transformer
- Dim
(L x W x H) 95 x 63 x 30 mm
- Output voltage (max.)
42 V
- Output voltage (min.)
25.2 V
- Test mark
MM-Zeichen; SELV
- Max. output current
500 mA
- Output current (max.) - rounded
500 mA
- Protection class
I
- LED driver features
not dimmable
IP67
- Connection
Braid
- Max. power
21 W
- No. of outputs
1 x
- Input voltage (max.)
305 V AC
- Min. input voltage
90 V AC
- Weight
340 g
- Power range
21 W (max)
- Width
63 mm
- Height
30 mm
- Length
95 mm
- Max. temperature
+80 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2900683 MEAN WELL LED transformer 21 W 500 mA 25.2 - 42 V not dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900683 MEAN WELL LED transformer 21 W 500 mA 25.2 - 42 V not dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2900683 MEAN WELL LED transformer 21 W 500 mA 25.2 - 42 V not dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
