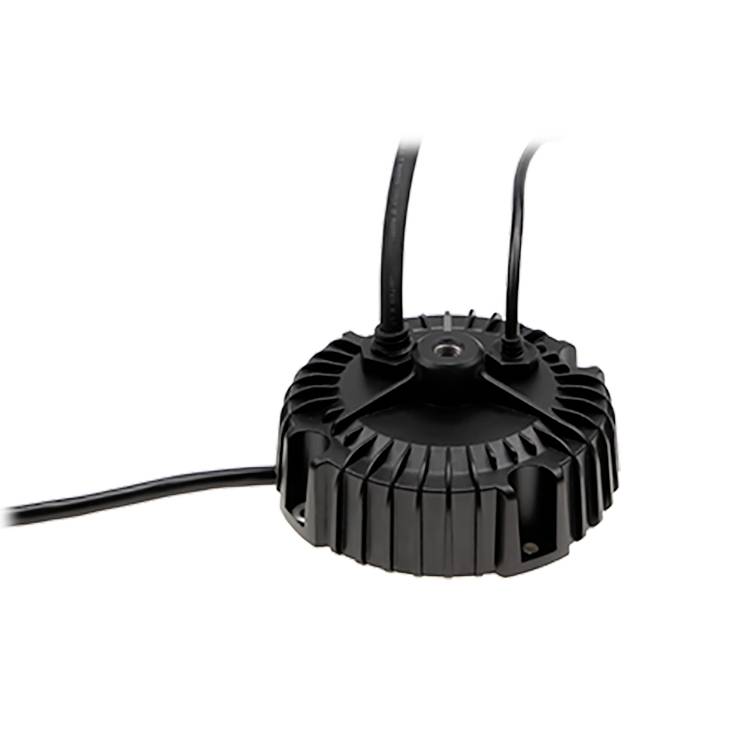

MEAN WELL LED transformer 240 W 4 A 30 - 60 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SNT IP67 240W 30-60V/2-5.78A CP
- 30 - 60 V
- 4 A
Technical specifications
- Product type
LED transformer
- Output voltage (max.)
60 V
- Output voltage (min.)
30 V
- Test mark
SELV
- Protection class
I
- LED driver features
dimmable
IP67
- Connection
Braid
- Max. power
240 W
- No. of outputs
1 x
- Output current (min.)
4 A
- Input voltage (max.)
431 V DC
305 V AC
- Min. input voltage
142 V DC
100 V AC
- Weight
1920 g
- Power range
240 W (max)
- Width
0 mm
- Height
65 mm
- Length
0 mm
- Max. temperature
+85 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2900735 MEAN WELL LED transformer 240 W 4 A 30 - 60 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900735 MEAN WELL LED transformer 240 W 4 A 30 - 60 V dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2900735 MEAN WELL LED transformer 240 W 4 A 30 - 60 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
