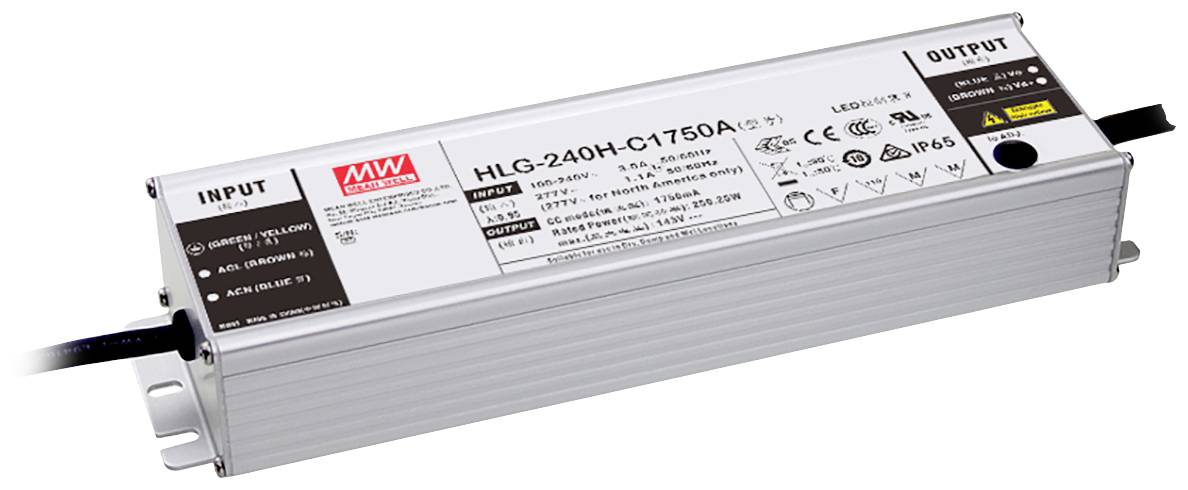

Image similar
Image similar
MEAN WELL LED transformer 249.9 W 700 mA 178 - 357 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SNT IP65 249.9W 178-357V/700mA CC dim.
- 178 - 357 V
- 700 mA
Technical specifications
- Product type
LED transformer
- Dim
(L x W x H) 244.2 x 68 x 38.8 mm
- Output voltage (max.)
357 V
- Output voltage (min.)
178 V
- Test mark
MM-Zeichen
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- Protection class
I
- LED driver features
dimmable
IP65
- Connection
Braid
- Max. power
249.9 W
- No. of outputs
1 x
- Input voltage (max.)
431 V DC
305 V AC
- Min. input voltage
127 V DC
90 V AC
- Weight
1300 g
- Power range
249.9 W (max)
- Width
68 mm
- Height
38.8 mm
- Length
244.2 mm
- Max. temperature
+90 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2900726 MEAN WELL LED transformer 249.9 W 700 mA 178 - 357 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900726 MEAN WELL LED transformer 249.9 W 700 mA 178 - 357 V dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2900726 MEAN WELL LED transformer 249.9 W 700 mA 178 - 357 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
