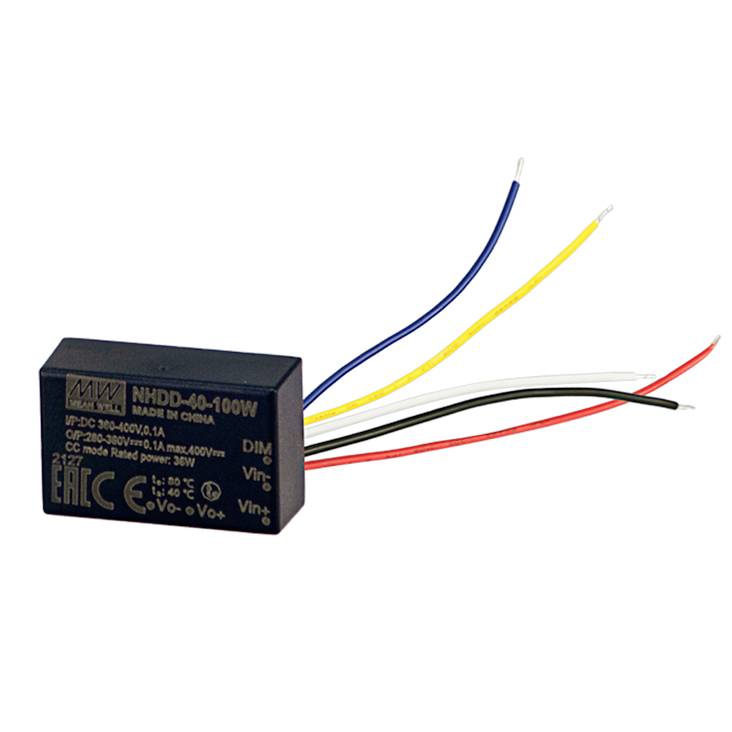

MEAN WELL LED transformer 36 W 100 mA 320 - 360 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DC/DC LED driver 360-400V 0.1A stranded wire
- 320 - 360 V
- 100 mA
Technical specifications
- Product type
LED transformer
- Dim
(L x W x H) 32.1 x 20.5 x 12.5 mm
- Output voltage (max.)
360 V
- Output voltage (min.)
320 V
- Max. output current
100 mA
- Output current (max.) - rounded
100 mA
- LED driver features
dimmable
- Connection
Braid
- Max. power
36 W
- Input voltage (max.)
400 V DC
- Min. input voltage
360 V DC
- Weight
18 g
- Power range
36 W (max)
- Width
20.5 mm
- Height
12.5 mm
- Length
32.1 mm
- Max. temperature
+40 °C
- Min. temperature
-30 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2900772 MEAN WELL LED transformer 36 W 100 mA 320 - 360 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900772 MEAN WELL LED transformer 36 W 100 mA 320 - 360 V dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2900772 MEAN WELL LED transformer 36 W 100 mA 320 - 360 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
