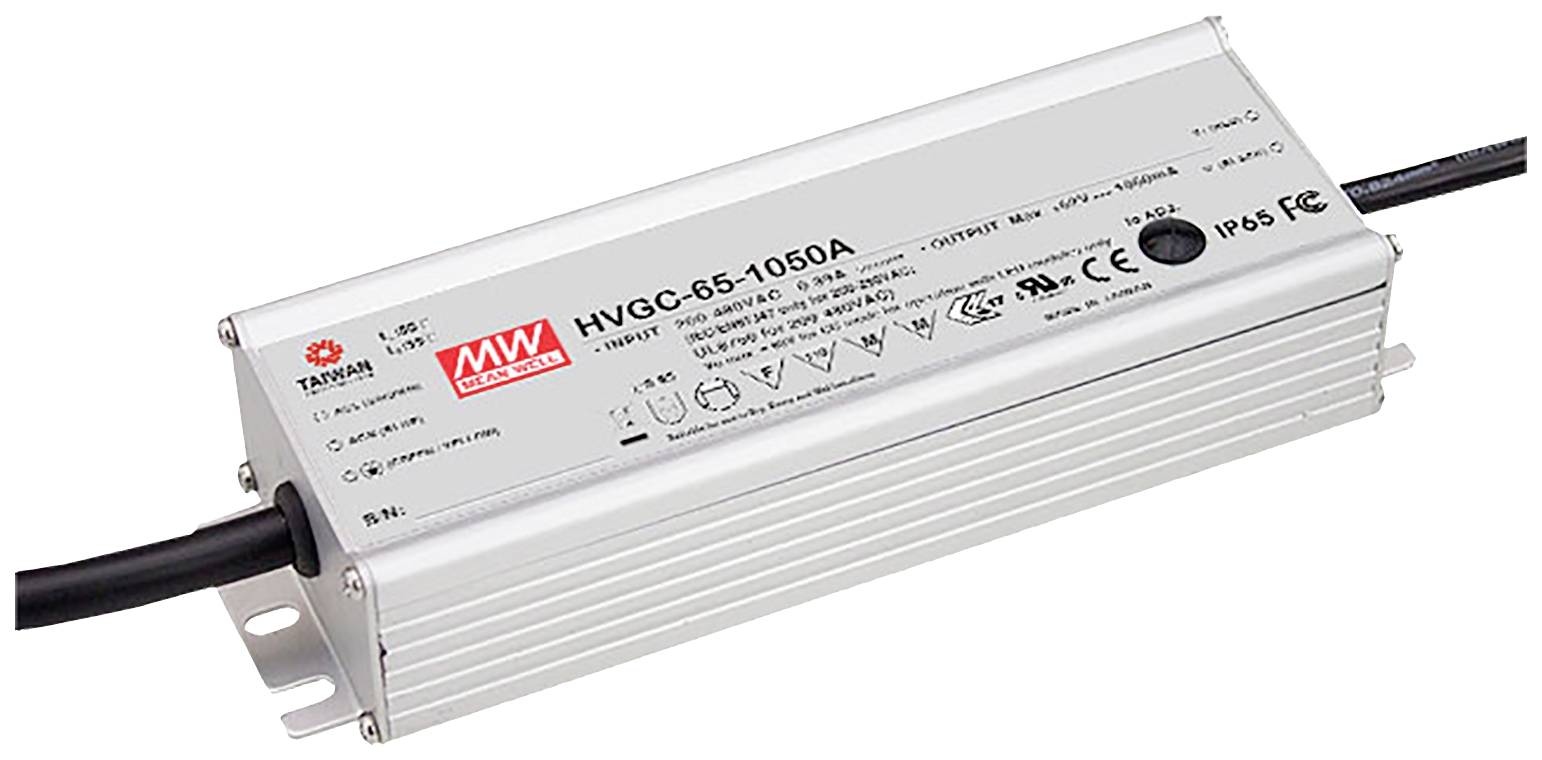

MEAN WELL LED transformer 65.1 W 350 mA 18 - 186 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SNT IP67 65.1W 18-186V/350mA cc dimmable
- 18 - 186 V
- 350 mA
Technical specifications
- Product type
LED transformer
- Dim
(L x W x H) 189 x 61.5 x 36.8 mm
- Output voltage (max.)
186 V
- Output voltage (min.)
18 V
- Test mark
MM-Zeichen; FCC
- Max. output current
350 mA
- Output current (max.) - rounded
350 mA
- Protection class
I
- LED driver features
dimmable
IP67
- Connection
Braid
- Max. power
65.1 W
- No. of outputs
1 x
- Input voltage (max.)
747 V DC
528 V AC
- Min. input voltage
254 V DC
180 V AC
- Weight
770 g
- Power range
65.1 W (max)
- Width
61.5 mm
- Height
36.8 mm
- Length
189 mm
- Max. temperature
+80 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2900694 MEAN WELL LED transformer 65.1 W 350 mA 18 - 186 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900694 MEAN WELL LED transformer 65.1 W 350 mA 18 - 186 V dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2900694 MEAN WELL LED transformer 65.1 W 350 mA 18 - 186 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
