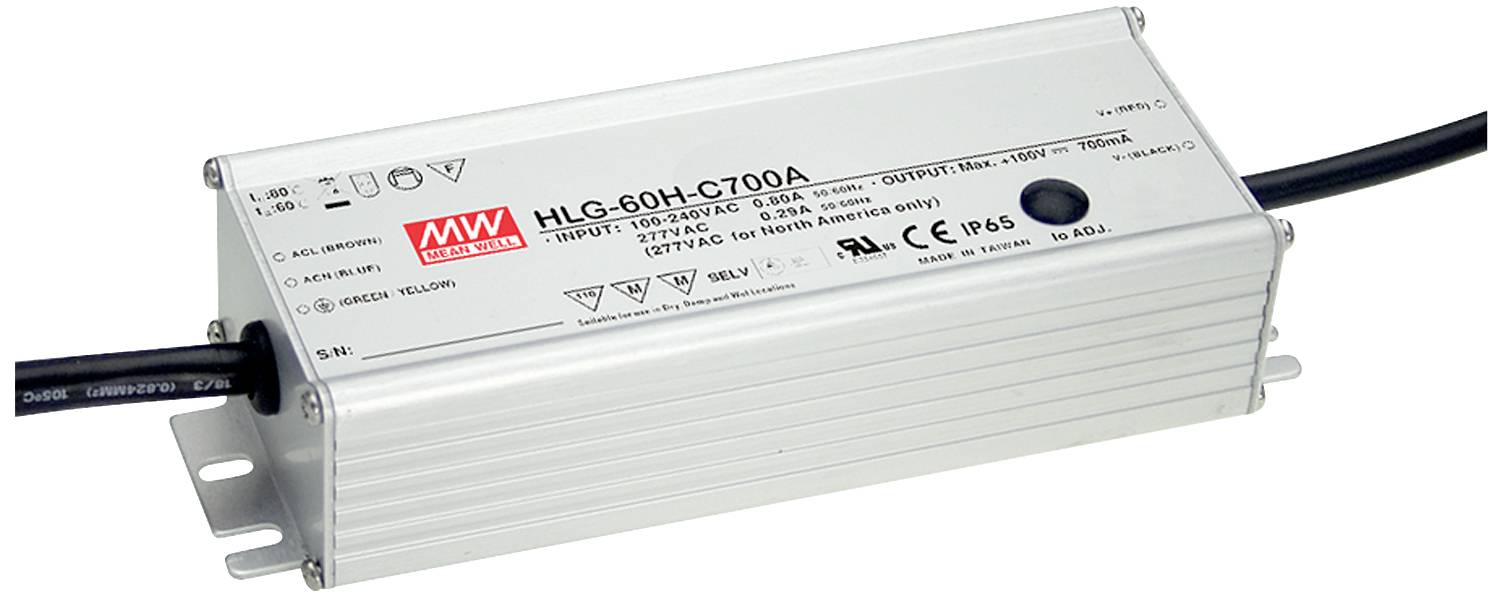

MEAN WELL LED transformer Constant current 70 W 700 mA 50 - 100 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SNT IP65 70W 50-100V/700mA CC dimming
- Constant current
- 50 - 100 V
- 700 mA
Technical specifications
- Product type
LED transformer
- Type
Constant current
- Dim
(L x W x H) 171 x 61.5 x 36.8 mm
- Output voltage (max.)
100 V
- Output voltage (min.)
50 V
- Test mark
TÜV; SELV; MM-Zeichen
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- Protection class
I
- LED driver features
dimmable
IP65
- Connection
Braid
- Max. power
70 W
- No. of outputs
1 x
- Output current (min.)
700 mA
- Input voltage (max.)
431 V DC
305 V AC
- Min. input voltage
127 V DC
90 V AC
- Weight
730 g
- Power (min.)
70 W
- Power range
70 up to 70 W
- Width
61.5 mm
- Height
36.8 mm
- Length
171 mm
- Max. temperature
+80 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2900687 MEAN WELL LED transformer Constant current 70 W 700 mA 50 - 100 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900687 MEAN WELL LED transformer Constant current 70 W 700 mA 50 - 100 V dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2900687 MEAN WELL LED transformer Constant current 70 W 700 mA 50 - 100 V dimmable 1 pc(s)
Description
Features
- Jet water and dust-proof
- Ideal for street lighting and sophisticated lighting systems
- Worldwide use
- Heavy duty metal casing
- Built-in protection against overvoltage, overheating, overload and short circuit
- Passive cooling
- Approvals: F, GS, CE, UL.
- This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
