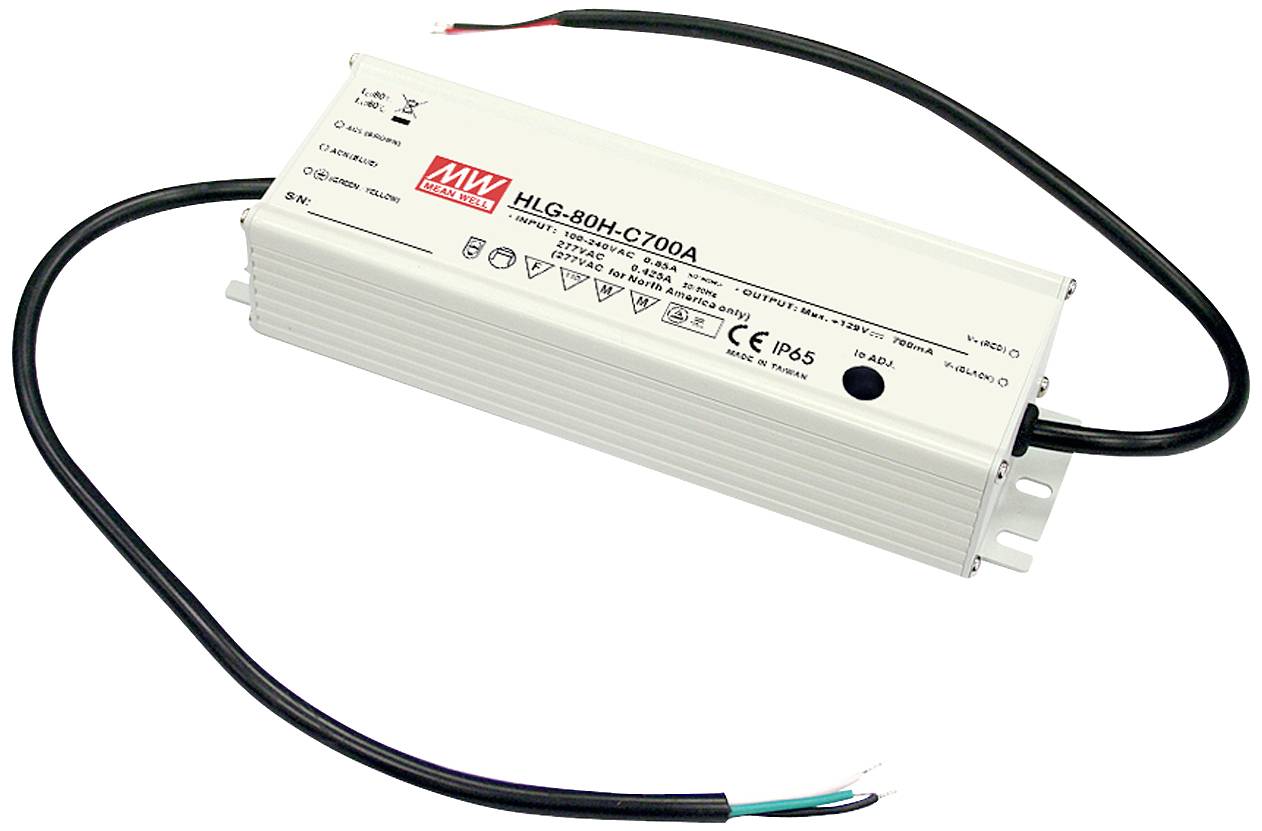

MEAN WELL LED transformer Constant current 90.3 W 700 mA 84 - 129 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SNT IP65 903W 1xxV/700mA cc dimmer
- Constant current
- 84 - 129 V
- 700 mA
Technical specifications
- Product type
LED transformer
- Type
Constant current
- Operating current
700 mA
- Dim
(L x W x H) 195.6 x 61.5 x 38.8 mm
- Output voltage (max.)
129 V
- Output voltage (min.)
84 V
- Test mark
TÜV; MM-Zeichen
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- Protection class
I
- LED driver features
dimmable
IP67
- Connection
Braid
- Max. power
90.3 W
- No. of outputs
1 x
- Input voltage (max.)
431 V DC
305 V AC
- Min. input voltage
127 V DC
90 V AC
- Weight
840 g
- Power range
90.3 W (max)
- Width
61.5 mm
- Height
38.8 mm
- Length
195.6 mm
- Max. temperature
+80 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2900702 MEAN WELL LED transformer Constant current 90.3 W 700 mA 84 - 129 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900702 MEAN WELL LED transformer Constant current 90.3 W 700 mA 84 - 129 V dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2900702 MEAN WELL LED transformer Constant current 90.3 W 700 mA 84 - 129 V dimmable 1 pc(s)
Description
Features
- Jet water and dust-proof
- Ideal for street lighting and sophisticated lighting systems
- Worldwide use
- Heavy duty metal casing
- Built-in protection against overvoltage, overheating, overload and short circuit
- Passive cooling
- Approvals: F, GS, CE, UL.
- This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
