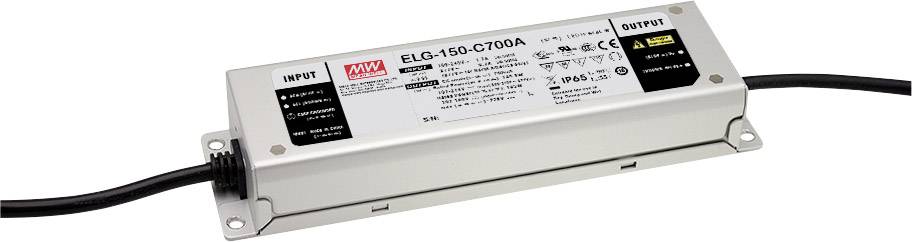

MEAN WELL LED Treiber LED driver Constant current 151.2 W 2100 mA 36 - 72 V DC 3-in-1 dimmer, Suitable for flammable sur
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED Treiber
- Constant current
- 36 - 72 V DC
- 2100 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 219 x 63 x 35.5 mm
- Factory colour
Metal
- Output voltage (max.)
72 V DC
- Output voltage (min.)
36 V DC
- Test mark
MM, SELV, UL, ENEC, CB
- Max. output current
2100 mA
- Output current (max.) - rounded
2.1 A
- Operating voltage
230 V AC
115 V AC
- LED driver features
3-in-1 dimmer
Suitable for flammable surfaces
Approved for use on furniture
Outdoor
PFC circuit
dimmable
Overvoltage
IP67
- Connection
Open end cable
- Max. power
151.2 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
305 V AC
431 V DC
- Min. input voltage
100 V AC
142 V DC
- Weight
950 g
- Power range
151.2 W (max)
- Type
Pulsed
- Width
63 mm
- Height
35.5 mm
- Length
219 mm
- Max. temperature
+90 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2237796 MEAN WELL LED Treiber LED driver Constant current 151.2 W 2100 mA 36 - 72 V DC 3-in-1 dimmer, Suitable for flammable sur
User & Safety Instructions
User & Safety Instructions 2237796 MEAN WELL LED Treiber LED driver Constant current 151.2 W 2100 mA 36 - 72 V DC 3-in-1 dimmer, Suitable for flammable sur
Warranty Terms
Warranty Terms 2237796 MEAN WELL LED Treiber LED driver Constant current 151.2 W 2100 mA 36 - 72 V DC 3-in-1 dimmer, Suitable for flammable sur
Description
With the ELG series from mean Well, we offer LED power supplies for you, which are characterized by their variety. The ELG series power supplies offer a setup time of less than 500 ms and a standby power consumption of less than 0.5 W.
This text is machine translated.
This text is machine translated.
Features
- Dimming via implemented control cable, 3 in 1 dimming function (0...10V DC, PWM, 100k Ohm potentiometer)
- protective conductor carried out in the primary cable
- Constant current
- Independant operating device
- Wide-range input
- Metal housing
- Overload protection through current limitation, auto recovery
- Protected against short circuit, overload, overvoltage, excess temperature
- Built-in PFC circuit
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
