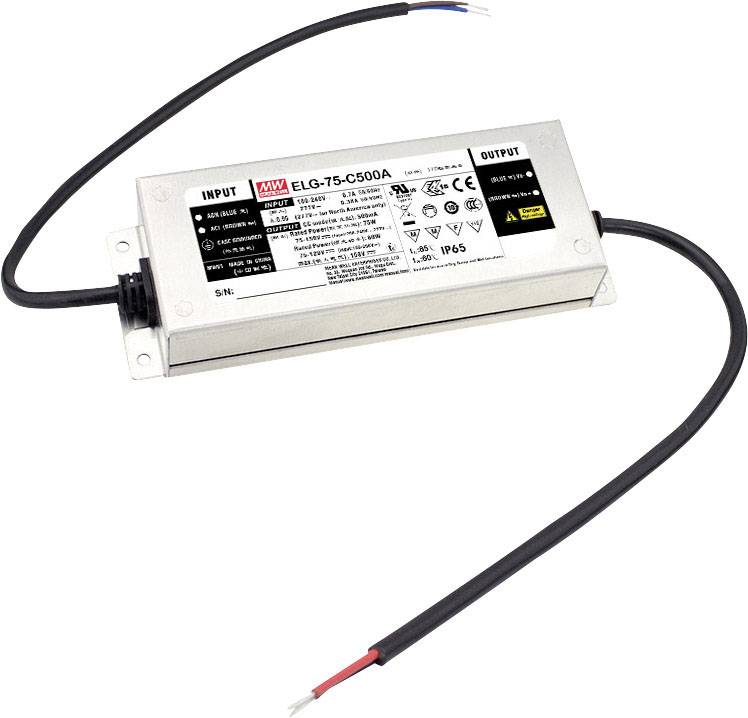

MEAN WELL LED Treiber LED driver Constant current 74.9 W 175 - 350 mA 107 - 214 V DC Suitable for flammable surfaces, Ap
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MEANWELL LED switched-mode power supply series ELG-75-C Metal Case IP65 Single Output CC Power: 75W
- Constant current
- 107 - 214 V DC
- 175 - 350 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 180 x 63 x 35.5 mm
- Factory colour
Metal
- Output voltage (max.)
214 V DC
- Output voltage (min.)
107 V DC
- Test mark
UL, MM, ENEC, CB
- Max. output current
350 mA
- Output current (max.) - rounded
350 mA
- Operating voltage
115 V AC
240 V AC
- LED driver features
Suitable for flammable surfaces
Approved for use on furniture
Outdoor
PFC circuit
adjustable
not dimmable
Overvoltage
Surge protection
IP65
- Connection
Open end cable
- Max. power
74.9 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
175 mA
- Input voltage (max.)
305 V AC
431 V DC
- Min. input voltage
100 V AC
142 V DC
- Weight
800 g
- Power (min.)
59.85 W
- Power range
59.85 up to 74.9 W
- Type
Pulsed
- Width
63 mm
- Height
35.5 mm
- Length
180 mm
- Max. temperature
+85 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2237725 MEAN WELL LED Treiber LED driver Constant current 74.9 W 175 - 350 mA 107 - 214 V DC Suitable for flammable surfaces, Ap
User & Safety Instructions
User & Safety Instructions 2237725 MEAN WELL LED Treiber LED driver Constant current 74.9 W 175 - 350 mA 107 - 214 V DC Suitable for flammable surfaces, Ap
Warranty Terms
Warranty Terms 2237725 MEAN WELL LED Treiber LED driver Constant current 74.9 W 175 - 350 mA 107 - 214 V DC Suitable for flammable surfaces, Ap
Description
With the ELG series from mean Well, we offer LED power supplies for you, which are characterized by their variety. The ELG series power supplies offer a setup time of less than 500 ms and a standby power consumption of less than 0.5 W.
This text is machine translated.
This text is machine translated.
Features
- Current limitation can be set via internal potentiometer on the bottom of the housing
- Constant current
- protective conductor carried out in the primary cable
- Independant operating device
- Wide-range input
- Metal housing
- Overload protection through current limitation, auto recovery
- Protected against short circuit, overload, overvoltage, excess temperature
- Built-in PFC circuit
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
