MEAN WELL LED Treiber LED driver Constant voltage 240 W 5 A 48 V not dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED Treiber
- Constant voltage
- 48 V
- 5 A
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Operating current
5 A
- Dim

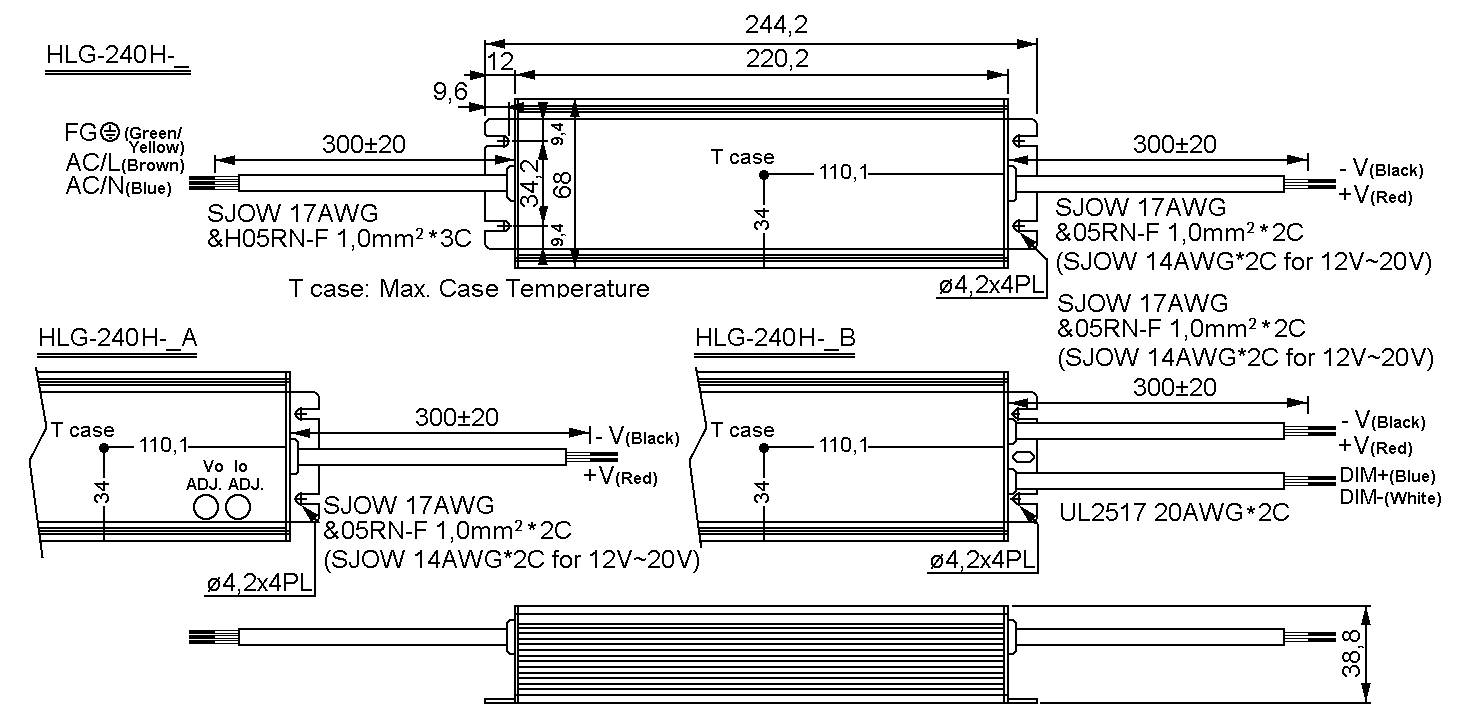

(L x W x H) 244.2 x 68 x 38.8 mm
- Output voltage (max.)
48 V
- Output voltage (min.)
48 V
- Test mark
TÜV; SELV
- Max. output current
5 A
- Output current (max.) - rounded
5 A
- Operating voltage
48 V
- Protection class
I
- LED driver features
not dimmable
IP67
- Connection
Braid
- Max. power
240 W
- No. of outputs
1 x
- Input voltage (max.)
431 V DC
305 V AC
- Min. input voltage
127 V DC
90 V AC
- Weight
1300 g
- Power range
240 W (max)
- Width
68 mm
- Height
38.8 mm
- Length
244.2 mm
- Max. temperature
+90 °C
- Min. temperature
-40 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2900656 MEAN WELL LED Treiber LED driver Constant voltage 240 W 5 A 48 V not dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900656 MEAN WELL LED Treiber LED driver Constant voltage 240 W 5 A 48 V not dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2900656 MEAN WELL LED Treiber LED driver Constant voltage 240 W 5 A 48 V not dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
