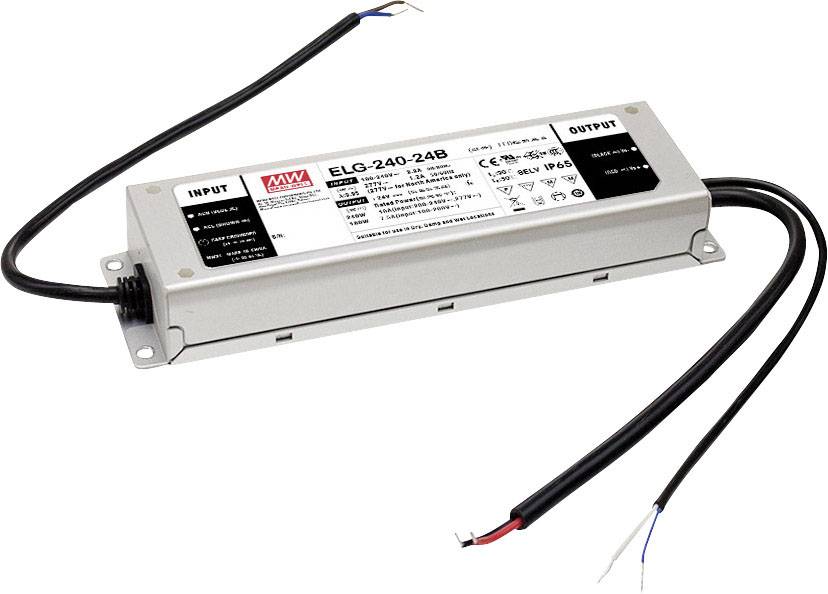

Image similar
Image similar
MEAN WELL ELG-240-48-3Y LED driver EEC G (A - G) Constant voltage, Constant current 240 W 5.0 A 48 V DC Suitable for fla
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MEANWELL LED switched-mode power supply series ELG-240 with protective conductor PE Metal Case IP67 Single Output CV+CC (Mixed Mode) Power: 240W
- Constant voltage, Constant current
- 48 V DC
- 5.0 A
Technical specifications
- Mixed mode output (voltage stabilized/CV or current stabilized/CC)
- Depending on the connected LED illuminant (constant current or constant voltage), the fits
- DC output of the LED power supply, within the framework of the specified technical parameters of the data sheet, the load.
- Product type
LED driver
- Type
Constant voltage
Constant current
- Dim
(L x W x H) 244 x 71 x 37.5 mm
- Factory colour
Metal
- Output voltage (max.)
48 V DC
- Output voltage (min.)
48 V DC
- Test mark
UL, MM, ENEC, CB
- Max. output current
5.0 A
- Output current (max.) - rounded
5 A
- Operating voltage
230 V AC
115 V AC
- LED driver features
Suitable for flammable surfaces
Approved for use on furniture
Outdoor
PFC circuit
Surge protection
Overvoltage
not dimmable
IP67
- Connection
Open end cable
- Max. power
240 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
5.0 A
- Input voltage (max.)
305 V AC
431 V DC
- Min. input voltage
100 V AC
142 V DC
- Weight
1220 g
- Power (min.)
180 W
- Power range
180 up to 240 W
- Type
Pulsed
- Width
71 mm
- Height
37.5 mm
- Length
244 mm
- Max. temperature
+90 °C
- Min. temperature
-40 °C
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2237676 MEAN WELL ELG-240-48-3Y LED driver EEC G (A - G) Constant voltage, Constant current 240 W 5.0 A 48 V DC Suitable for fla
User & Safety Instructions
User & Safety Instructions 2237676 MEAN WELL ELG-240-48-3Y LED driver EEC G (A - G) Constant voltage, Constant current 240 W 5.0 A 48 V DC Suitable for fla
Warranty Terms
Warranty Terms 2237676 MEAN WELL ELG-240-48-3Y LED driver EEC G (A - G) Constant voltage, Constant current 240 W 5.0 A 48 V DC Suitable for fla
Description
With the ELG series from mean Well, we offer LED power supplies for you, which are characterized by their variety. The ELG series power supplies offer a setup time of less than 500 ms and a standby power consumption of less than 0.5 W.
This text is machine translated.
This text is machine translated.
Features
- Voltage and current are preset permanently
- Protective conductor in the primary cable, worldwide certified connection cable
- Constant current, constant voltage
- Independant operating device
- Wide-range input
- Metal housing
- Overload protection through current limitation, auto recovery
- Protected against short circuit, overload, overvoltage, excess temperature
- Built-in PFC circuit
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
