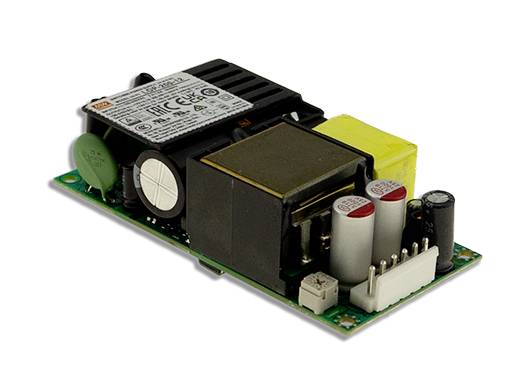

MEAN WELL LOP-200-27 SMPSU 7.5 A 202.5 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mean Well LOP-200 SNT open frame single
- Output / 7.5 A
- Power 202.5 W
- Connector
Technical specifications
- Series LOP-200
- Application: ITE,Industry,Household,Medical
- Dimensions: Length 101.6 mm
- Dimensions: Width 50.8 mm
- Dimensions: Height 25.4 mm
- Weight: 210 g
- Identification: TÜV
- MTBF 393900 h
- Operation maintenance 30,000 h
- Min. Operating temperature -40 °C
- Max. operating temperature: 80 °C
- Storage temperature, min.: -40 °C.
- Storage temperature, max. 85 °C
- Power supply/phases
- Min. Network frequency: 47 Hz
- Network frequency max. 63 Hz
- Min. Input voltage AC 80 V
- Max. Input voltage AC 264 V
- Min. Input voltage DC 113 V.
- Max. Input voltage DC 370 V.
- Input current 1 A
- Efficiency 94 %
- Idle power, less than 0.5 W
- Leakage current, max. 0.5 mA
- Inrush current, max. 80 A
- Power factor correction (PFC): 1
- Power factor 0.95
- Connector type, input: Connector
- Number of outputs 1
- Output power 202.5 W
- Output power convection cooled 143.1 W
- Output voltage 27 V
- Output voltage tolerance -1 - 1 %
- Remaining ripple 200 MVP-p
- Output current 7.5 A
- Overload protection 1
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Overtemperature protection 1
- Connector type, output: Connector
- Protection class I+II
- INSULATION VOLTAGE I/P-O/P 4,000 V
- INSULATION VOLTAGE I/P-FG 2,000 V
- INSULATION VOLTAGE O/P-FG 1,500 V
- Surge voltage category 3
- APPROVALS IEC, EN, UL, AS/NZ, CCC,UKCA,CE,EAC
- Standards (EMC): EN 55032 Class B, EN 55032 Class A, EN 55014
- STANDARDS (SECURITY): UL 62368-1, IEC 62368-1, IEC 61558-1, IEC 1-1, IEC 61558-60335-16, IEC 1-1, EN 62368-60601, EN 2-1, EN 61558-61558, EN 60335-2-16, EN 60601-1, ANSI/AAMI ES 60601-1
- Medical protection classification: 2*MOPP
- REACH-SVHC: No.
- WEEE (waste electronics): No.
- Product type
SMPSU
- Input voltage (max.)
264 V
- Max. output current
7.5 A
- Output current (max.) - rounded
7.5 A
- Min. input voltage
80 V
- Dim
(L x W x H) 101.6 x 50.8 x 25.4 mm
- Connection
Connector
202.5 W
- Efficiency to
94 %
- Tolerance (output voltage)
1 %
- Consumption (standby)
0.5 W
- Protection class
II
- No. of outputs
1 x
- Output voltage 1
27 V
- Type
open
- Operating temperature (max.)
80 °C
- Max. operating temperature (derating)
80 °C
- Min. operating temperature (derating)
-40 °C
- Operating temperature (min.)
-40 °C
- Weight
210 g
- PSU features
Adjustable voltage output
- Width
50.8 mm
- Height
25.4 mm
- Length
101.6 mm
- Type
LOP-200-27
- MTBF
393900 h
- Max. power
202.5 W
- Input voltage
370 V
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3164181 MEAN WELL LOP-200-27 SMPSU 7.5 A 202.5 W
Datasheet 3164181 MEAN WELL LOP-200-27 SMPSU 7.5 A 202.5 W
User & Safety Instructions
User & Safety Instructions 3164181 MEAN WELL LOP-200-27 SMPSU 7.5 A 202.5 W
Warranty Terms
Warranty Terms 3164181 MEAN WELL LOP-200-27 SMPSU 7.5 A 202.5 W
Description
Output voltage adjustable, DC compatible, fan connection, peak Power
This text is machine translated.
This text is machine translated.
Hints
These power supplies are intended for installation in terminals.
