Buy MEAN WELL LOP-300-24 SMPSU 12.5 A 300 W

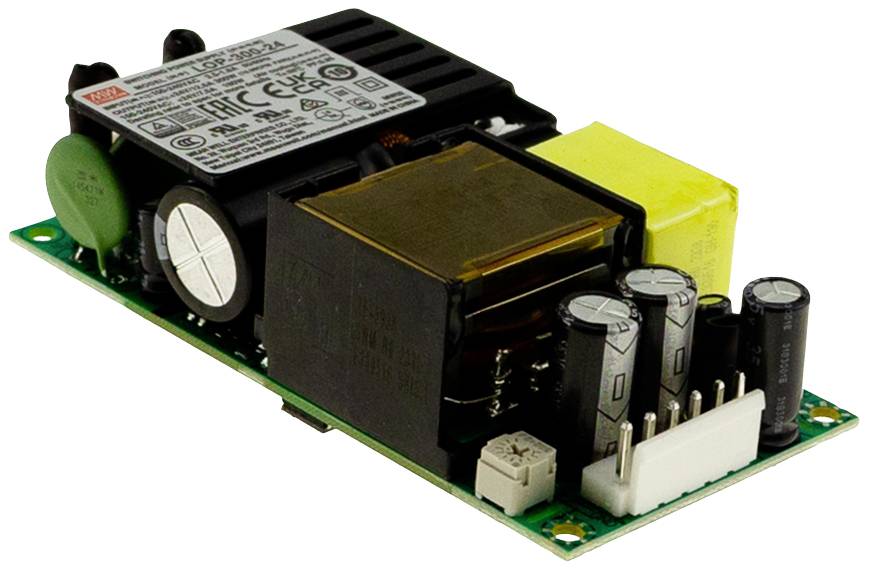

An open switched-mode power supply with electronic components, including capacitors and a transformer, mounted on a circuit board.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Mean Well LOP-300 SNT open frame single

Output / 12.5 A
Power 300 W
Connector

Technical specifications

Series LOP-300
Application: ITE,Industry,Household,Medical
Dimensions: Length 101.6 mm
Dimensions: Width 50.8 mm
Dimensions: Height 25.4 mm
Weight: 210 g
Identification: TÜV
MTBF 384400 h
Operation maintenance 30,000 h
Min. Operating temperature -40 °C
Max. operating temperature: 80 °C
Storage temperature, min.: -40 °C.
Storage temperature, max. 85 °C
Power supply/phases
Min. Network frequency: 47 Hz
Network frequency max. 63 Hz
Min. Input voltage AC 80 V
Max. Input voltage AC 264 V
Min. Input voltage DC 113 V.
Max. Input voltage DC 370 V.
Input current 1.8 A
Efficiency 93 %
Idle power, less than 0.5 W
Leakage current, max. 0.5 mA
Inrush current, max. 80 A
Power factor correction (PFC): 1
Power factor 0.95
Connector type, input: Connector
Number of outputs 1
Power output: 300 W
Output power convection cooled 180 W
Output voltage 24 V
Output voltage tolerance -2 - 2 %
Remaining ripple 200 MVP-p
Output current: 12.5 A
Overload protection 1
Overload protection version: Hiccup
Short circuit protection 1
Overvoltage protection 1
Overtemperature protection 1
Connector type, output: Connector
Protection class I+II
INSULATION VOLTAGE I/P-O/P 4,000 V
INSULATION VOLTAGE I/P-FG 2,000 V
INSULATION VOLTAGE O/P-FG 1,500 V
Surge voltage category 3
APPROVALS AS/NZ,CCC,CE,EN,EAC,UL,UKCA,IEC
Standards (EMC): EN 55032 Class A, EN 55032 Class B, EN 55014
STANDARDS (SECURITY): EN 16 60601-1-1 60601, EN 60335 1-1, EN 61558-61558, EN 60601-62368-1, EN 60335-1, UL 62368-1, IEC 2-16, IEC 61558-1, IEC 2-1, IEC 61558-1, ANSI/AAMI ES 62368
Medical protection classification: 2*MOPP
REACH-SVHC: No.
WEEE (waste electronics): No.
