MEAN WELL LOP-300-54 SMPSU 5.6 A 302.4 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

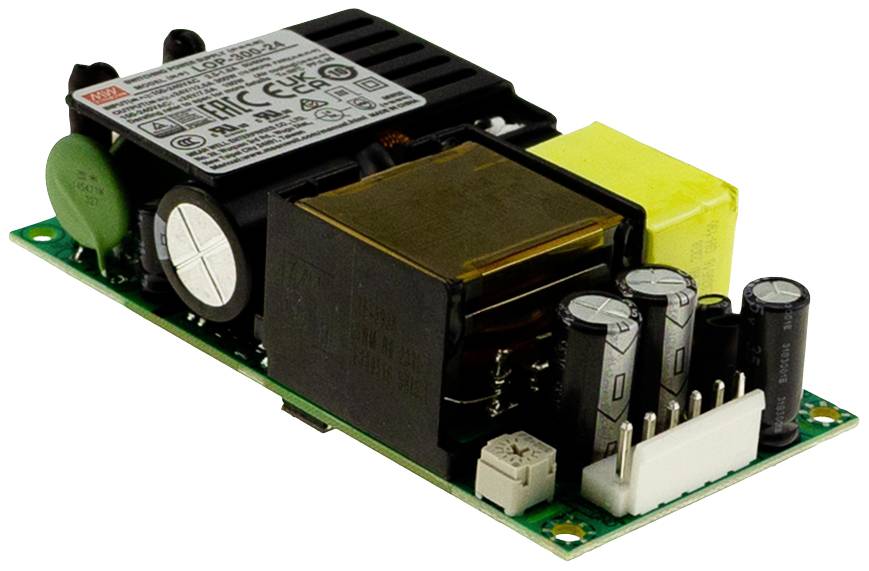

Mean Well LOP-300 SNT open frame single
- Output / 5.6 A
- Power 302.4 W
- Connector
Technical specifications
- Series LOP-300
- Application: ITE,Industry,Household,Medical
- Dimensions: Length 101.6 mm
- Dimensions: Width 50.8 mm
- Dimensions: Height 25.4 mm
- Weight: 210 g
- Identification: TÜV
- MTBF 384400 h
- Operation maintenance 30,000 h
- Min. Operating temperature -40 °C
- Max. operating temperature: 80 °C
- Storage temperature, min.: -40 °C.
- Storage temperature, max. 85 °C
- Power supply/phases
- Min. Network frequency: 47 Hz
- Network frequency max. 63 Hz
- Min. Input voltage AC 80 V
- Max. Input voltage AC 264 V
- Min. Input voltage DC 113 V.
- Max. Input voltage DC 370 V.
- Input current 1.8 A
- Efficiency 94 %
- Idle power, less than 0.5 W
- Leakage current, max. 0.5 mA
- Inrush current, max. 80 A
- Power factor correction (PFC): 1
- Power factor 0.95
- Connector type, input: Connector
- Number of outputs 1
- Power output: 302.4 W
- Output power convection cooled 183.6 W
- Output voltage 54 V
- Output voltage tolerance -1 - 1 %
- Remaining ripple 250 MVP-p
- Output current: 5.6 A
- Overload protection 1
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Overtemperature protection 1
- Connector type, output: Connector
- Protection class I+II
- INSULATION VOLTAGE I/P-O/P 4,000 V
- INSULATION VOLTAGE I/P-FG 2,000 V
- INSULATION VOLTAGE O/P-FG 1,500 V
- Surge voltage category 3
- APPROVALS AS/NZ,CCC,CE,EN,EAC,UL,UKCA,IEC
- Standards (EMC): EN 55032 Class A, EN 55032 Class B, EN 55014
- STANDARDS (SECURITY): EN 16 60601-1-1 60601, EN 60335 1-1, EN 61558-61558, EN 60601-62368-1, EN 60335-1, UL 62368-1, IEC 2-16, IEC 61558-1, IEC 2-1, IEC 61558-1, ANSI/AAMI ES 62368
- Medical protection classification: 2*MOPP
- REACH-SVHC: No.
- WEEE (waste electronics): No.
- Product type
SMPSU
- Input voltage (max.)
264 V
- Max. output current
5.6 A
- Output current (max.) - rounded
5.6 A
- Min. input voltage
80 V
- Dim
(L x W x H) 101.6 x 50.8 x 25.4 mm
- Connection
Connector
302.4 W
- Efficiency to
94 %
- Tolerance (output voltage)
1 %
- Consumption (standby)
0.5 W
- Protection class
II
- No. of outputs
1 x
- Output voltage 1
54 V
- Type
open
- Operating temperature (max.)
80 °C
- Max. operating temperature (derating)
80 °C
- Min. operating temperature (derating)
-40 °C
- Operating temperature (min.)
-40 °C
- Weight
210 g
- PSU features
Adjustable voltage output
- Width
50.8 mm
- Height
25.4 mm
- Length
101.6 mm
- Type
LOP-300-54
- MTBF
384400 h
- Max. power
302.4 W
- Input voltage
370 V
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3164193 MEAN WELL LOP-300-54 SMPSU 5.6 A 302.4 W
Datasheet 3164193 MEAN WELL LOP-300-54 SMPSU 5.6 A 302.4 W
User & Safety Instructions
User & Safety Instructions 3164193 MEAN WELL LOP-300-54 SMPSU 5.6 A 302.4 W
Warranty Terms
Warranty Terms 3164193 MEAN WELL LOP-300-54 SMPSU 5.6 A 302.4 W
Description
Output voltage adjustable, DC compatible, fan connection, peak Power
This text is machine translated.
This text is machine translated.
Hints
These power supplies are intended for installation in terminals.
