MEAN WELL LOP-400-12 SMPSU 33.3 A 399.6 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

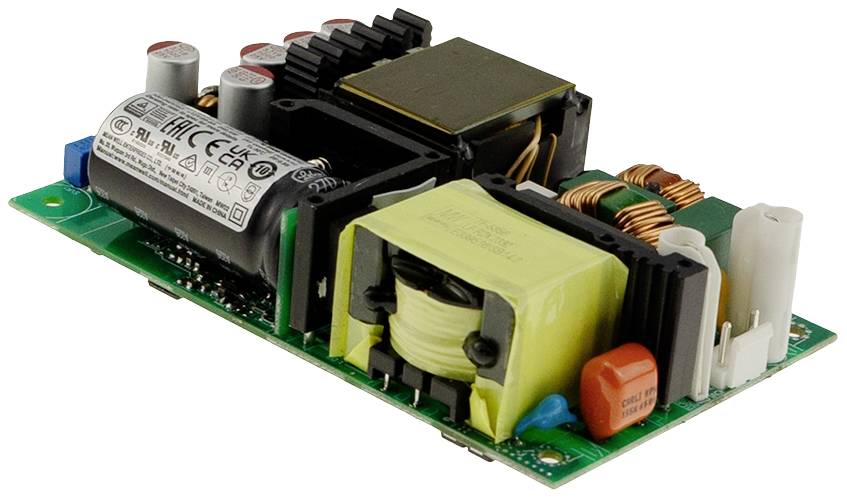

Mean Well LOP-400 SNT open frame single
- Output / 33.3 A
- Power 399.6 W
- Connector
Technical specifications
- Series LOP-400
- Application: ITE,Industry,Household,Medical
- Dimensions: Length 127 mm
- Dimensions: Width 76.2 mm
- Dimensions: Height 27.5 mm
- Weight: 390 g
- Identification: TÜV
- MTBF 231200 h
- Operation maintenance 30,000 h
- Min. Operating temperature -40 °C
- Max. operating temperature: 80 °C
- Storage temperature, min.: -40 °C.
- Storage temperature, max. 85 °C
- Power supply/phases
- Min. Network frequency: 47 Hz
- Network frequency max. 63 Hz
- Min. Input voltage AC 80 V
- Max. Input voltage AC 264 V
- Min. Input voltage DC 113 V.
- Max. Input voltage DC 370 V.
- Input current 2.1 A
- Efficiency 94 %
- Idle power, less than 0.5 W
- Leakage current, max. 0.5 mA
- Inrush current, max. 80 A
- Power factor correction (PFC): 1
- Power factor 0.95
- Connector type, input: Connector
- Number of outputs 1
- Power output: 399.6 W
- Output power convection cooled 249.6 W
- Output voltage 12 V
- Output voltage tolerance -3 - 3 %
- Remaining ripple 120 MVP-p
- Output current: 33.3 A
- Overload protection 1
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Overtemperature protection 1
- Connector type, output: Connector
- Protection class I+II
- INSULATION VOLTAGE I/P-O/P 4,000 V
- INSULATION VOLTAGE I/P-FG 2,000 V
- INSULATION VOLTAGE O/P-FG 1,500 V
- Surge voltage category 3
- APPROVALS: IEC, EN, UL, AS/NZ, CCC,UKCA,CE,EAC,RCM
- Standards (EMC): EN 55032 Class B, EN 55032 Class A, EN 55014
- STANDARDS (SECURITY): IEC 62368-1, IEC 60335-1, IEC 61558-60601, IEC 2-1-61558, IEC 61558-60335, EN 62368-1, EN 1-1, EN 60601-2, EN 16-61558-16, EN 1-1, UL 62368-1, ANSI/AAMI ES 60601-1
- Medical protection classification: 2*MOPP
- REACH-SVHC: No.
- WEEE (waste electronics): No.
- Product type
SMPSU
- Input voltage (max.)
264 V
- Max. output current
33.3 A
- Output current (max.) - rounded
33.3 A
- Min. input voltage
80 V
- Dim
(L x W x H) 127.0 x 76.2 x 27.5 mm
- Connection
Connector
399.6 W
- Efficiency to
94 %
- Tolerance (output voltage)
-3 - 3 %
- Consumption (standby)
0.5 W
- Protection class
II
- No. of outputs
1 x
- Output voltage 1
12 V
- Type
open
- Operating temperature (max.)
80 °C
- Operating temperature (min.)
-40 °C
- Weight
390 g
- PSU features
Adjustable voltage output
- Width
76.2 mm
- Height
27.5 mm
- Length
127.0 mm
- Type
LOP-400-12
- MTBF
231200 h
- Max. power
399.6 W
- Input voltage
370 V
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3164194 MEAN WELL LOP-400-12 SMPSU 33.3 A 399.6 W
Datasheet 3164194 MEAN WELL LOP-400-12 SMPSU 33.3 A 399.6 W
User & Safety Instructions
User & Safety Instructions 3164194 MEAN WELL LOP-400-12 SMPSU 33.3 A 399.6 W
Warranty Terms
Warranty Terms 3164194 MEAN WELL LOP-400-12 SMPSU 33.3 A 399.6 W
Description
Output voltage adjustable, DC compatible, fan connection, peak power, remote sense, DC-OK signal
This text is machine translated.
This text is machine translated.
Hints
These power supplies are intended for installation in terminals.
