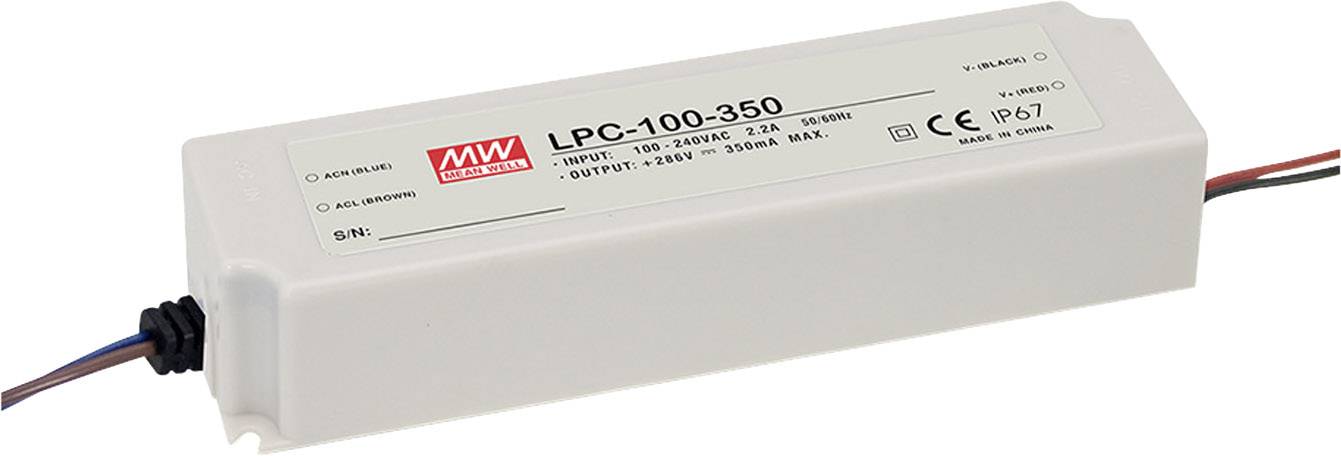

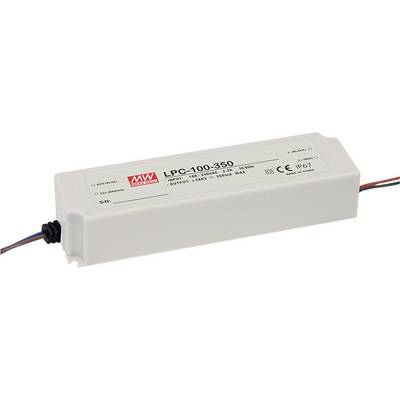

MEAN WELL LPC-100-350 LED driver Constant current 100 W 0.35 A 143 - 286 V DC not dimmable, Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED switching power supply
- Constant current
- 143 - 286 V DC
- 0.35 A
Technical specifications
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 220 x 70 x 40 mm
- Output voltage (max.)
286 V DC
- Output voltage (min.)
143 V DC
- Max. output current
0.35 A
- Output current (max.) - rounded
350 mA
- Operating voltage
115 V AC
230 V AC
- Protection class
II
- LED driver features
not dimmable
Surge protection
IP67
- Connection
Open end cable
- Max. power
100 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V AC
- Min. input voltage
90 V AC
- Weight
610 g
- Power range
100 W (max)
- Type
Synchronised
- Width
70 mm
- Height
40 mm
- Length
220 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1439406 MEAN WELL LPC-100-350 LED driver Constant current 100 W 0.35 A 143 - 286 V DC not dimmable, Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1439406 MEAN WELL LPC-100-350 LED driver Constant current 100 W 0.35 A 143 - 286 V DC not dimmable, Surge protection 1 pc(s)
Information
Information 1439406 MEAN WELL LPC-100-350 LED driver Constant current 100 W 0.35 A 143 - 286 V DC not dimmable, Surge protection 1 pc(s)
Warranty Terms
Warranty Terms 1439406 MEAN WELL LPC-100-350 LED driver Constant current 100 W 0.35 A 143 - 286 V DC not dimmable, Surge protection 1 pc(s)
Description
The LED switching power supply feature a universal input and are IP67 plastic housing installed. This design is protected against short circuit, overload and overvoltage and has a fixed output current.
Features
- universal input
- plastic enclosure IP67
- overload protection, current limiting, auto recovery
- protections: short circuit/over load/over voltage
- Protection class 2
- Fixed output current
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
