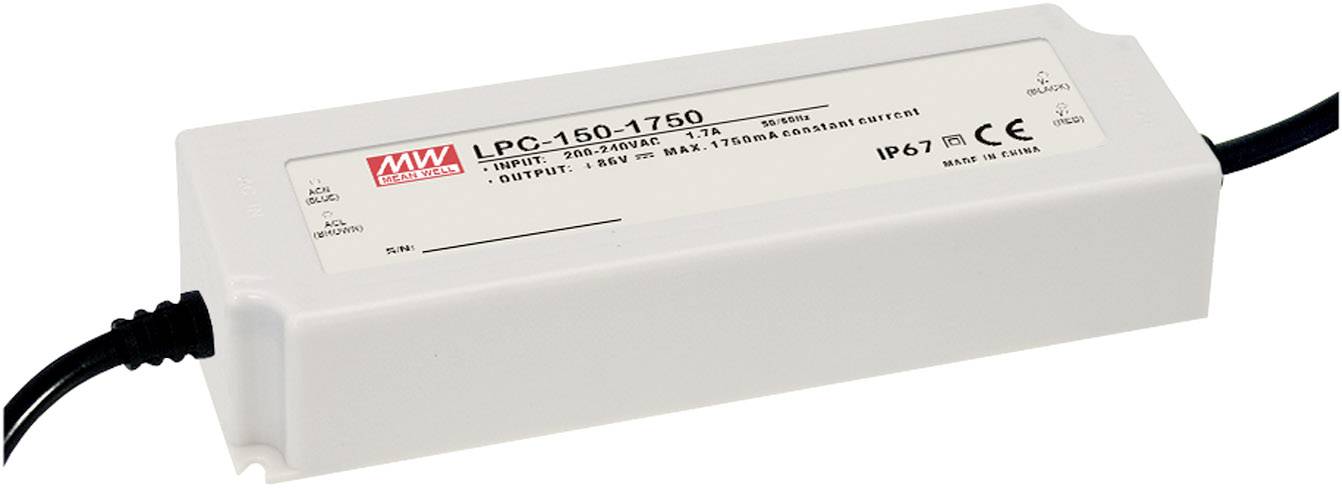

Image similar

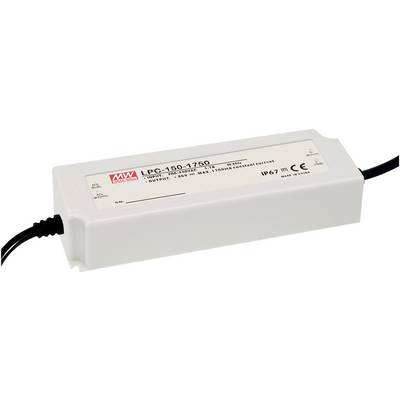

Image similar
MEAN WELL LPC-150-2100 LED driver Constant current 151 W 2.1 A 36 - 72 V DC not dimmable, Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Switching power supply
- Constant current
- 36 - 72 V DC
- 2.1 A
Technical specifications
- protection class: IP67
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 191 x 63 x 37.5 mm
- Output voltage (max.)
72 V DC
- Output voltage (min.)
36 V DC
- Max. output current
2.1 A
- Output current (max.) - rounded
2.1 A
- Operating voltage
230 V AC
- Protection class
II
- LED driver features
not dimmable
Surge protection
IP67
- Connection
Open end cable
- Max. power
151 W
- No. of outputs
1 x
- No. of inputs
1 x
- Type
constant current
- Input voltage (max.)
305 V AC
- Min. input voltage
180 V AC
- Weight
740 g
- Power range
151 W (max)
- Type
Synchronised
- Width
63 mm
- Height
37.5 mm
- Length
191 mm
- Output voltage
31-62 V
- Output current (details)
2450 mA
- Type
switched-mode
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1371722 MEAN WELL LPC-150-2100 LED driver Constant current 151 W 2.1 A 36 - 72 V DC not dimmable, Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1371722 MEAN WELL LPC-150-2100 LED driver Constant current 151 W 2.1 A 36 - 72 V DC not dimmable, Surge protection 1 pc(s)
Information
Information 1371722 MEAN WELL LPC-150-2100 LED driver Constant current 151 W 2.1 A 36 - 72 V DC not dimmable, Surge protection 1 pc(s)
Warranty Terms
Warranty Terms 1371722 MEAN WELL LPC-150-2100 LED driver Constant current 151 W 2.1 A 36 - 72 V DC not dimmable, Surge protection 1 pc(s)
Description
Constant voltage-switching power supply in waterproof plastic enclosure (IP67) with an input voltage range of 180-305 V/AC.
Features
- universal input
- plastic enclosure IP67
- overload protection, current limiting, auto recovery
- protections: short circuit/over load/over voltage
- protection class 2
- fixed output current
Hints
Devices only for use in equipment with another primary purpose such as photocopiers, overhead projectors and slide projectors or for scale illumination or indication purposes. Suitable for indoor use and outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minutes.
