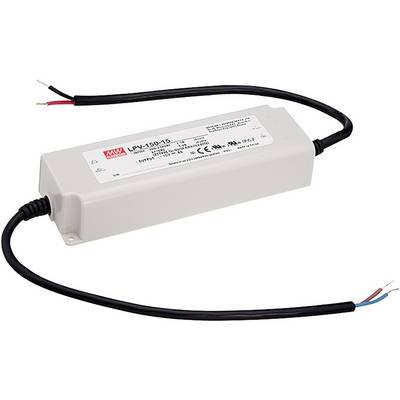

Image similar

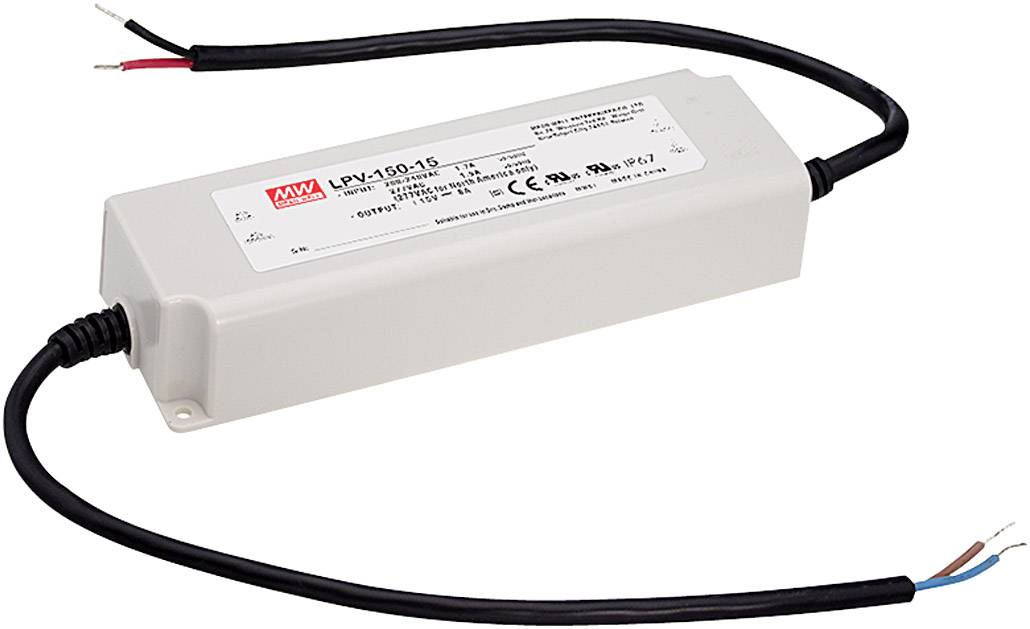

Image similar
MEAN WELL LPV-150-12 SMPSU 12 V DC 10 A 120 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Switching power supply
Highlights & Details
- Output 12 V DC / 10 A
- Power 120 W
- Open end cable
Technical specifications
- protection class: IP67
- Type
switched-mode
- Product type
SMPSU
- Input voltage (max.)
305 V AC
- Max. output current
10 A
- Output current (max.) - rounded
10 A
- Min. input voltage
180 V AC
- Dim
(L x W x H) 191 x 63 x 37.5 mm
- Output voltage (max.)
12 V DC
- Connection
Open end cable
120 W
- Protection class
IP67
- No. of outputs
1 x
- Type
constant voltage
- Type
closed
- Weight
740 g
- Type
Synchronised
- Width
63 mm
- Height
37.5 mm
- Length
191 mm
- Type
LPV-150-12
- No. of inputs
1 x
120 W
- Output voltage
15 V
- Output current (details)
8 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1371730 MEAN WELL LPV-150-12 SMPSU 12 V DC 10 A 120 W
User & Safety Instructions
User & Safety Instructions 1371730 MEAN WELL LPV-150-12 SMPSU 12 V DC 10 A 120 W
Information
Information 1371730 MEAN WELL LPV-150-12 SMPSU 12 V DC 10 A 120 W
Warranty Terms
Warranty Terms 1371730 MEAN WELL LPV-150-12 SMPSU 12 V DC 10 A 120 W
Description
Constant voltage-switching power supply in waterproof plastic enclosure (IP67) with an input voltage range of 180-305 V/AC.
Features
- plastic enclosure IP67
- overload protection, pulsing hiccup shutdown, auto recovery
- protections: short circuit/over load/over voltage
- fixed output voltage
Hints
Devices only for use in equipment with another primary purpose such as photocopiers, overhead projectors and slide projectors or for scale illumination or indication purposes. Suitable for indoor use and outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minutes.
