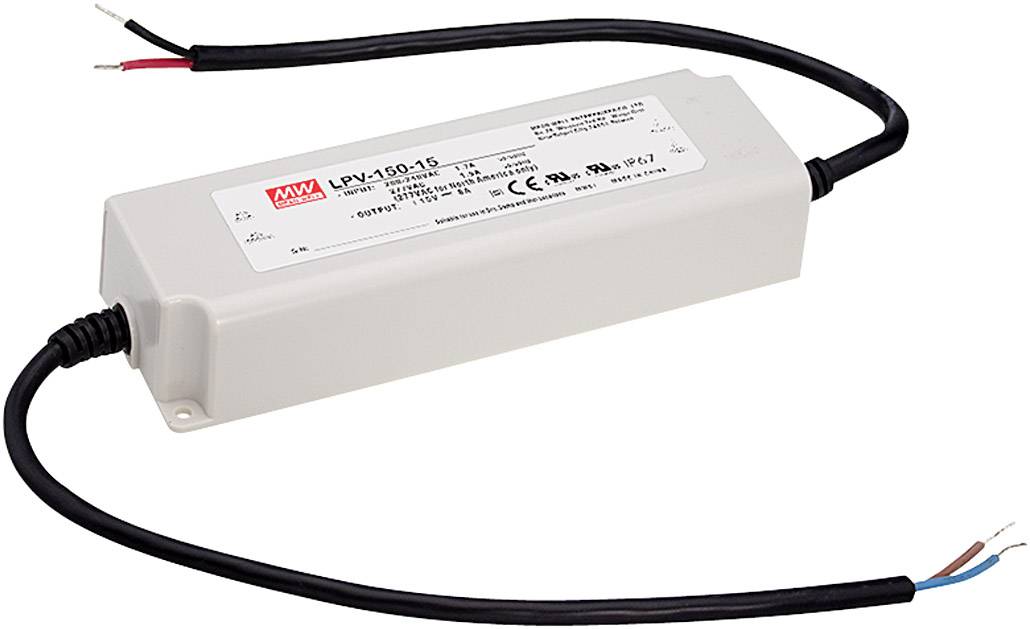

Image similar

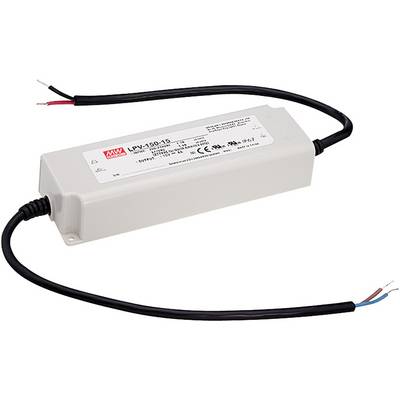

Image similar
MEAN WELL LPV-150-36 LED transformer Constant voltage 151 W 0 - 4.2 A 36 V DC not dimmable, Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Switching power supply
- Constant voltage
- 36 V DC
- 0 - 4.2 A
Technical specifications
- protection class: IP67
- Product type
LED transformer
- Type
Constant voltage
- Operating current
4.2 A
- Dim
(L x W x H) 191 x 63 x 37.5 mm
- Output voltage (max.)
36 V DC
- Output voltage (min.)
36 V DC
- Max. output current
4.2 A
- Output current (max.) - rounded
4.2 A
- Operating voltage
115 V AC
230 V AC
- Protection class
IP67
- LED driver features
not dimmable
Surge protection
IP67
- Connection
Open end cable
- Max. power
151 W
- No. of outputs
1 x
- No. of inputs
1 x
- Type
constant voltage
- Output current (min.)
0 A
- Input voltage (max.)
305 V AC
- Min. input voltage
180 V AC
- Weight
740 g
- Power (min.)
151 W
- Power range
151 up to 151 W
- Type
Synchronised
- Width
63 mm
- Height
37.5 mm
- Length
191 mm
- Output voltage
48 V
- Output current (details)
3.2 A
- Type
switched-mode
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1371733 MEAN WELL LPV-150-36 LED transformer Constant voltage 151 W 0 - 4.2 A 36 V DC not dimmable, Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1371733 MEAN WELL LPV-150-36 LED transformer Constant voltage 151 W 0 - 4.2 A 36 V DC not dimmable, Surge protection 1 pc(s)
Information
Information 1371733 MEAN WELL LPV-150-36 LED transformer Constant voltage 151 W 0 - 4.2 A 36 V DC not dimmable, Surge protection 1 pc(s)
Warranty Terms
Warranty Terms 1371733 MEAN WELL LPV-150-36 LED transformer Constant voltage 151 W 0 - 4.2 A 36 V DC not dimmable, Surge protection 1 pc(s)
Description
Constant voltage-switching power supply in waterproof plastic enclosure (IP67) with an input voltage range of 180-305 V/AC.
Features
- plastic enclosure IP67
- overload protection, pulsing hiccup shutdown, auto recovery
- protections: short circuit/over load/over voltage
- fixed output voltage
Hints
Devices only for use in equipment with another primary purpose such as photocopiers, overhead projectors and slide projectors or for scale illumination or indication purposes. Suitable for indoor use and outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minutes.
