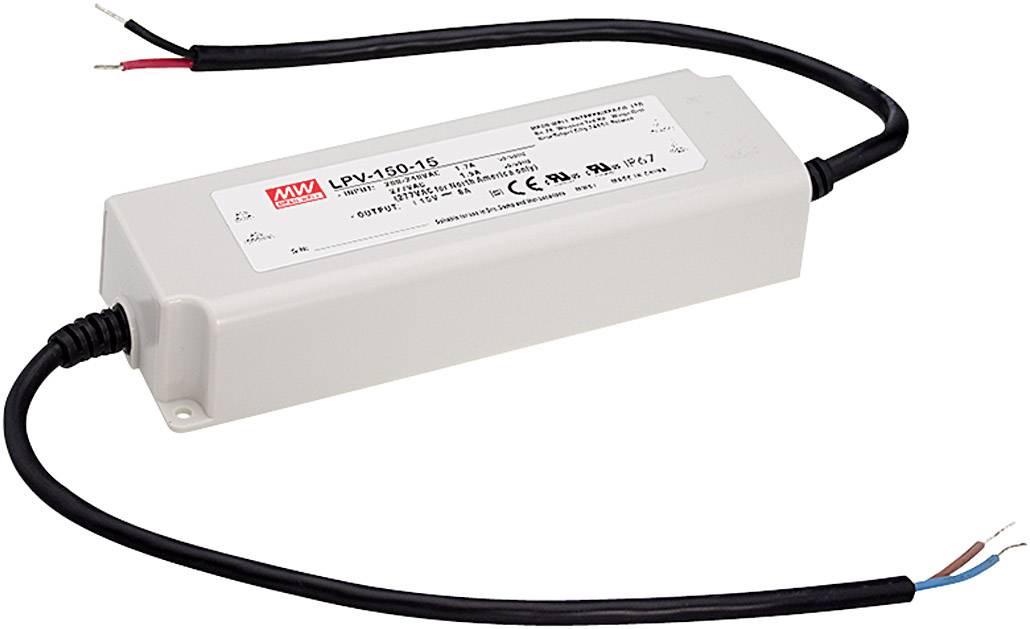

Image similar

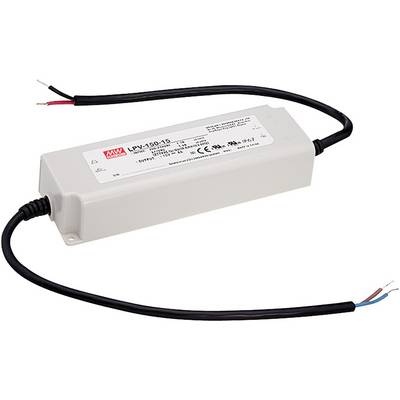

Image similar
MEAN WELL LPV-150-48 LED transformer Constant voltage 153 W 0 - 3.2 A 48 V DC not dimmable, Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Switching power supply DIN-rail
- Constant voltage
- 48 V DC
- 0 - 3.2 A
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 191 x 63 x 37.5 mm
- Output voltage (max.)
48 V DC
- Output voltage (min.)
48 V DC
- Max. output current
3.2 A
- Output current (max.) - rounded
3.2 A
- Operating voltage
115 V AC
230 V AC
- Protection class
IP67
- LED driver features
not dimmable
Surge protection
IP67
- Connection
Open end cable
- Max. power
153 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 A
- Input voltage (max.)
305 V AC
- Min. input voltage
180 V AC
- Weight
740 g
- Power (min.)
153 W
- Power range
153 up to 153 W
- Type
Synchronised
- Width
63 mm
- Height
37.5 mm
- Length
191 mm
- Output voltage
12 V
- Output current (details)
10 A
- Type
switched-mode
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1371734 MEAN WELL LPV-150-48 LED transformer Constant voltage 153 W 0 - 3.2 A 48 V DC not dimmable, Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1371734 MEAN WELL LPV-150-48 LED transformer Constant voltage 153 W 0 - 3.2 A 48 V DC not dimmable, Surge protection 1 pc(s)
Information
Information 1371734 MEAN WELL LPV-150-48 LED transformer Constant voltage 153 W 0 - 3.2 A 48 V DC not dimmable, Surge protection 1 pc(s)
Warranty Terms
Warranty Terms 1371734 MEAN WELL LPV-150-48 LED transformer Constant voltage 153 W 0 - 3.2 A 48 V DC not dimmable, Surge protection 1 pc(s)
Description
Switching power supply in case enclosure, direct assembly on DIN rail with an input voltage range of 90-264 V/AC.
Features
- direct assembly on DIN rail
- case, touch-guard screw terminals
- universal input
- overload protection, current limiting, auto-recovery
- protections: short circuit/over load/over voltage
- DC OK LED display
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
