MEAN WELL LRS-1200-24 AC/DC industrial PSU module 24 V 50 A 1200 W

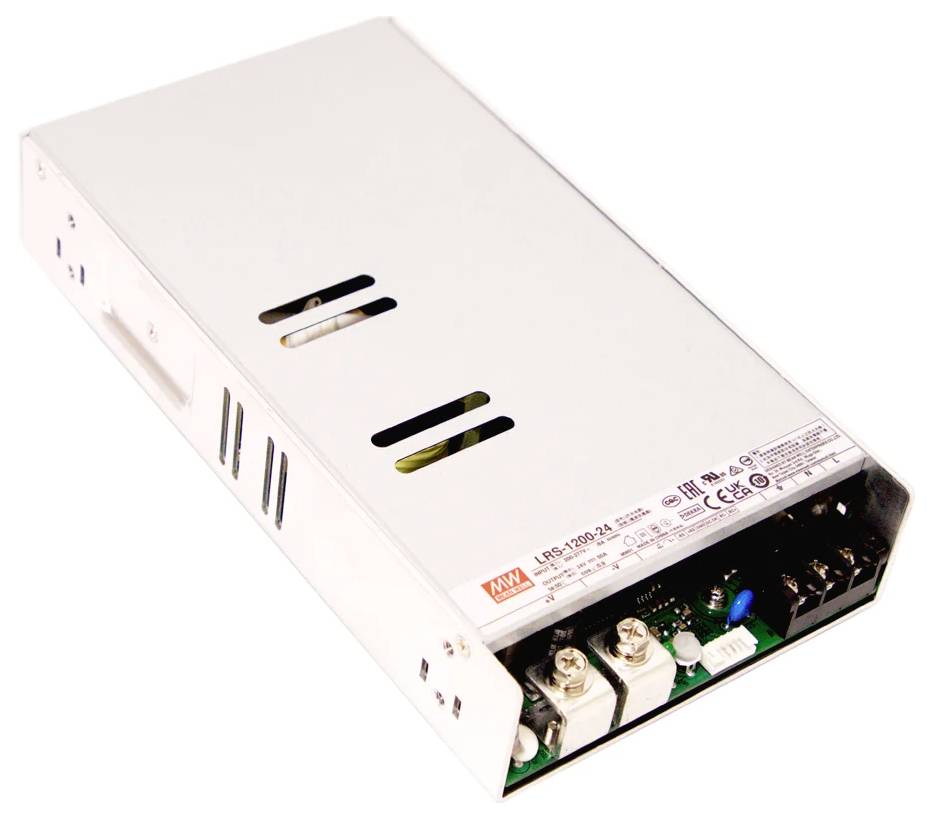

Open metal switching power supply unit with vent slots and exposed terminal connections.

Open metal switching power supply unit with vent slots and exposed terminal connections.

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Output 24 V / 50 A
Power 1200 W
Screw terminal

Technical specifications

Product type: AC/DC industrial PSU module

Input voltage (max.): 305 V AC
431 V DC

Max. output current: 50 A

Output current (max.) - rounded: 50 A

Min. input voltage: 180 V AC
255 V DC

Dim: (L x W x H) 225 x 124 x 41 mm

Output voltage (max.): 24 V

Connection: Screw terminal

: 1200 W

Efficiency to: 93 %

Protection class: I

Operating temperature (max.): 70 °C

Operating temperature (min.): -30 °C

Weight: 1280 g

Width: 124 mm

Height: 41 mm

Length: 225 mm

Type: LRS-1200
