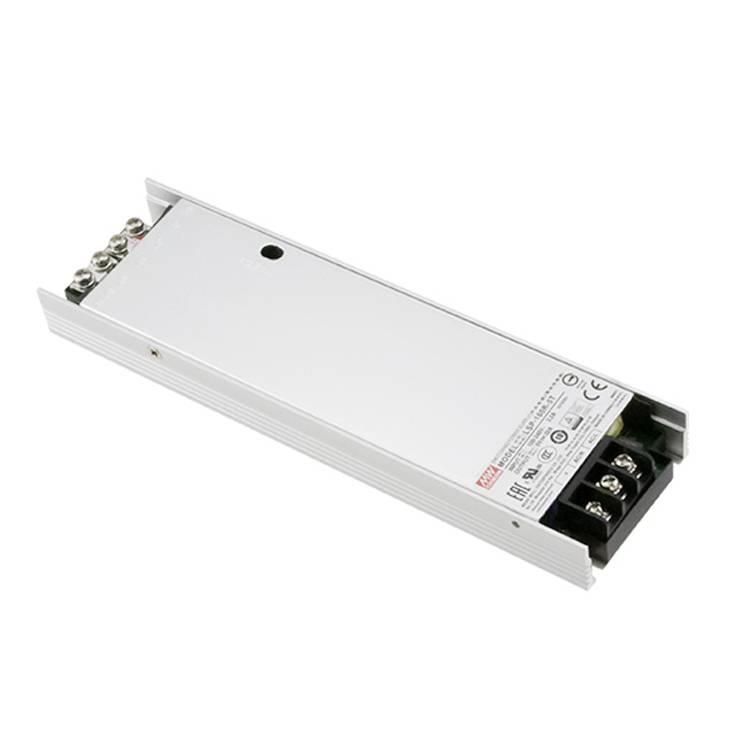

MEAN WELL LSP-160-5T Industrial PSU 5 V 32 A 160 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mean Well AC/DC-industrial power supply U-bracket 160 W 5 V 32 a
- Output 5 V / 32 A
- Power 160 W
Technical specifications
- Connector type, input: Screw terminalInput current 1.1 AConnector type, output: Screw terminalProtection class: IEfficiency level 89.5 %Leakage current, max. 0.75 mASwitch-on current, max. 85 A
- Product type
Industrial PSU
- Input voltage (max.)
264 V AC
370 V DC
- Max. output current
32 A
- Output current (max.) - rounded
32 A
- Min. input voltage
100 V AC
141 V DC
- Dim
(L x W x H) 194 x 55 x 20 mm
- Output voltage (max.)
5 V
160 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
+70 °C
- Operating temperature (min.)
-30 °C
- Weight
356 g
- PSU features
Adjustable voltage output
- Width
55 mm
- Height
20 mm
- Length
194 mm
- Type
LSP-160-5T
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2749284 MEAN WELL LSP-160-5T Industrial PSU 5 V 32 A 160 W
User & Safety Instructions
User & Safety Instructions 2749284 MEAN WELL LSP-160-5T Industrial PSU 5 V 32 A 160 W
Warranty Terms
Warranty Terms 2749284 MEAN WELL LSP-160-5T Industrial PSU 5 V 32 A 160 W
Description
Features
- Application: ITE, IndustryU-bracket casing
