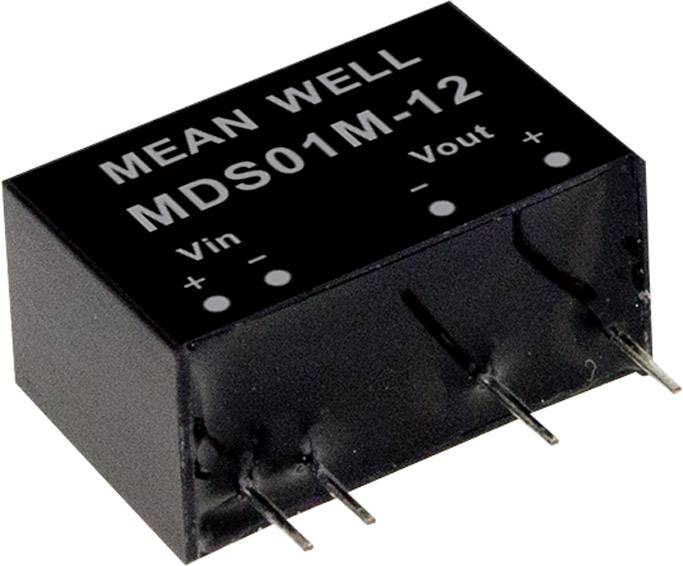

MEAN WELL MDS01N-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
Only 2 Piece(s) available
Highlights & Details
MEANWELL DC/DC converter modules series MDS01 SIP/SIL7 Case Single Output Input voltage ratio: 1:1 Power: 1 W Unregulated Medical
- SIP7/SIL7-casing
- Input/output insulation 6000 V DC or 4200 V DC (reinforced insulation)
- Medical Safety Approved (1x MOP/2x MOP) (ANSI/AAMI IT 60601-1)
- Low patient leakage (below 2 µA)
- Efficiency up to 82%
- Short-circuit-proof (max. 3 s)
- Low Cost
Technical specifications
- Product type
DC/DC converter (module)
- Type
MDS01N-12
- Min. input voltage
21.6 V DC
- Input voltage (max.)
26.4 V DC
- No. of outputs
1 x
- Max. output current
84 mA
- Output current (max.) - rounded
84 mA
- Efficiency (max.)
79 %
1 W
- Insulation voltage
6000 V DC
4200 V DC
- Connection
Pins
- PSU features
DC-to-DC converter
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 19.5 x 9.8 x 12.5 mm
- Height
12.5 mm
- Length
19.5 mm
- Width
9.8 mm
- Output voltage (max.)
12 V DC
- Output current (min.)
9 mA
- Weight
4.2 g
- Content
1 pc(s)
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2143621 MEAN WELL MDS01N-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2143621 MEAN WELL MDS01N-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 2143621 MEAN WELL MDS01N-12 DC/DC converter (module) 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)
Description
In response to increasing demands in the domestic care and medical market presents mean corrugated medical DC/DC converter MDS01 and mdd 01. These two brand new series offer you: SIP standard pin assignment, an extremely wide operating temperature range from -40 to +85 °C without performance reduction, 6KVDC or 4,2KVAC I/O insulation and extremely low leakage currents of below 2 μA. They are compliant with international medical safety regulations and comply with ANSI/AAMI IT 60601-1 (1x/2x MOOP). This means the MOP DC/DC converter MDS01 and mdd 01 ideally suited for medical devices such as oxygen monitors, medical wagon and oral care devices.
This text is machine translated.
This text is machine translated.
Features
- SIP7/SIL7-casing
- Input/output insulation 6000 V DC or 4200 V DC (reinforced insulation)
- Medical Safety Approved (1x MOP/2x MOP) (ANSI/AAMI IT 60601-1)
- Low patient leakage (below 2 µA)
- Efficiency up to 82%
- Short-circuit-proof (max. 3 s)
