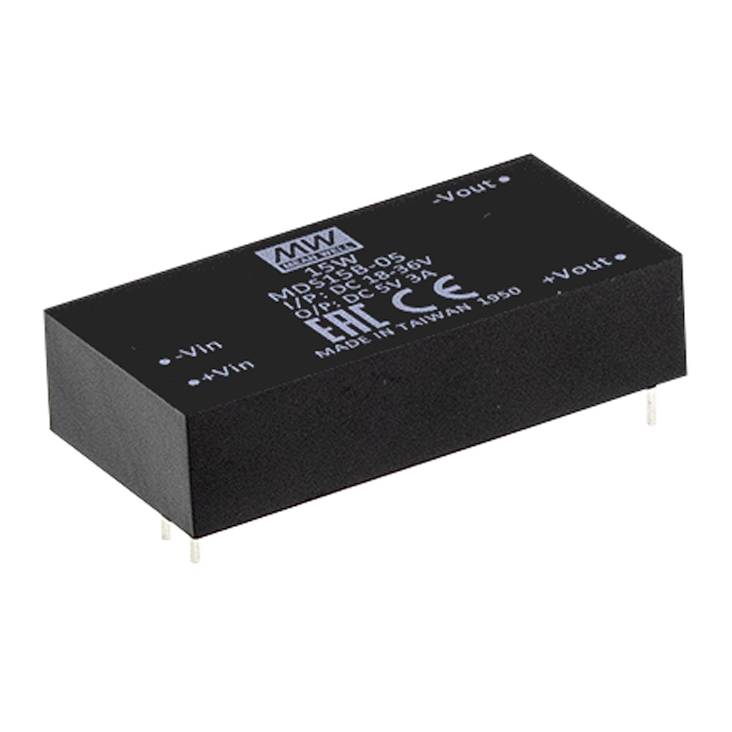

MEAN WELL MDS15B-05 DC/DC converter 24 V 5 V 3 A 15 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mean Well DC/DC converter regulated 5 V 3 A 2"*1" 4,000 V.
- Application: Medicine
- This text is machine translated.
Technical specifications
- Connection type, input: THTConnection type, output: THTCapacitive load, max. 5600 µF
- Product type
DC/DC converter
- Type
MDS15B-05
- Nominal voltage
24 V
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
5 V
- Max. output current
3 A
- Output current (max.) - rounded
3 A
- Efficiency (max.)
87 %
15 W
- Insulation voltage
4.000 V
- Dim
(L x W x H) 50.80 x 25.40 x 12 mm
- Height
12 mm
- Length
50.80 mm
- Width
25.40 mm
- Weight
30 g
- Content
1 pc(s)
- Max. temperature
+90 °C
- Min. temperature
-40 °C
