Buy MEAN WELL MFM-05-12 AC/DC PSU (print) 12 V DC 420 mA 5 W

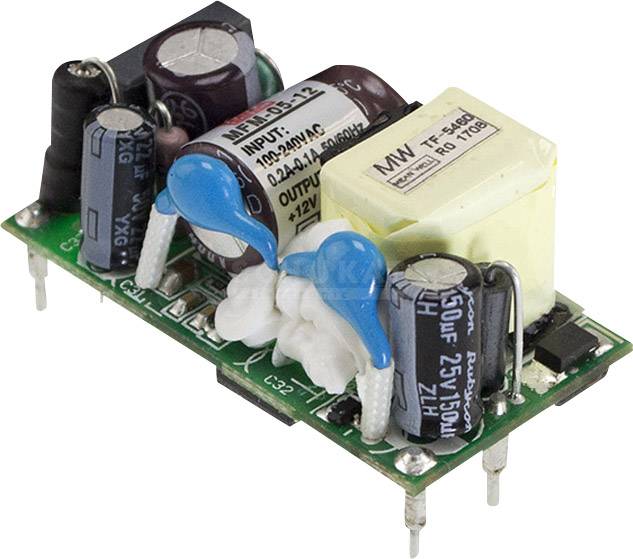

'Small electronic circuit with transformer and capacitors on a circuit board, ready for industrial applications.'

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Medical open-frame (On Board) Single Output Power: 5 W

Output 12 V DC / 420 mA
Power 5 W
Print, Solder pins

Technical specifications

Product type: AC/DC PSU (print)

Input voltage (max.): 264 V AC

Max. output current: 420 mA

Output current (max.) - rounded: 420 mA

Min. input voltage: 80 V AC

Dim: (L x W x H) 42 x 22.3 x 20.5 mm

Output voltage (max.): 12 V DC

Connection: Print
Solder pins

: 5 W

No. of outputs: 1 x

Type: open

Weight: 18 g

Type: Pulsed

Width: 22.3 mm

Height: 20.5 mm

Length: 42 mm

Type: MFM-05-12

MTBF: 1799000 h

No. of inputs: 1 x

PFC: No

Max. temperature: 85 °C

Min. temperature: -40 °C

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1837997 MEAN WELL MFM-05-12 AC/DC PSU (print) 12 V DC 420 mA 5 W

User & Safety Instructions

User & Safety Instructions 1837997 MEAN WELL MFM-05-12 AC/DC PSU (print) 12 V DC 420 mA 5 W

Warranty Terms

Warranty Terms 1837997 MEAN WELL MFM-05-12 AC/DC PSU (print) 12 V DC 420 mA 5 W

Description

Mean corrugated represents a new power supply series with high power density: the on-board type series MFM. Compared with the size of the last generation-PM AND NFM-is the size of the new series only one-third, but a wider operating temperature range, a higher efficiency and lower idle power. The design of this series meets the guidelines of the IEC/EN 60601-1 of 3. Version and ANSI/AAMI IT 60601-1, meets the requirements of 2x mop and has a low leakage current (<80 μA). It is approved for medical equipment. The level the BF with direct patient contact. Suitable applications include medical test devices, portable medical devices and medical devices, which require an extremely low standby power consumption, etc.
