Buy MEAN WELL MFM-10-5 AC/DC PSU (print) 5 V DC 2 A 10 W

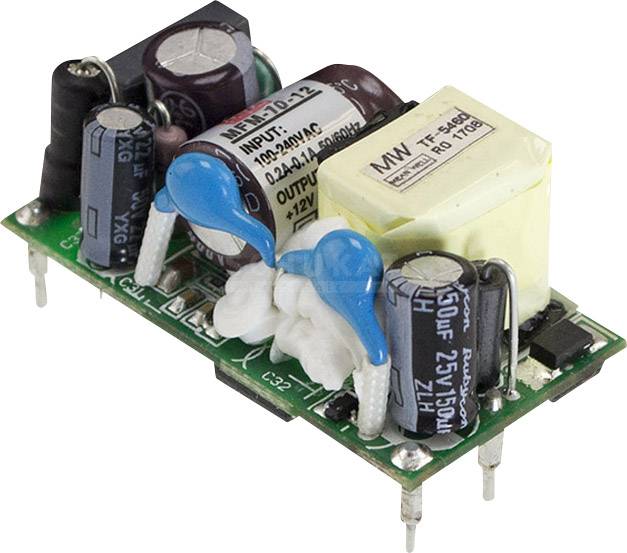

'Electronic circuit board with capacitors and transformers.'

Datasheet (PDF)

Unavailable

14 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Medical open-frame (On Board) Single Output Power: 10 W

Output 5 V DC / 2 A
Power 10 W
Print, Solder pins

Technical specifications

Product type: AC/DC PSU (print)

Input voltage (max.): 264 V AC

Max. output current: 2 A

Output current (max.) - rounded: 2 A

Min. input voltage: 80 V AC

Dim: (L x W x H) 42 x 22.3 x 20.5 mm

Output voltage (max.): 5 V DC

Connection: Print
Solder pins

: 10 W

No. of outputs: 1 x

Type: open

Weight: 18 g

Type: Pulsed

Width: 22.3 mm

Height: 20.5 mm

Length: 42 mm

Type: MFM-10-5

MTBF: 1756000 h

No. of inputs: 1 x

PFC: No

Max. temperature: 85 °C

Min. temperature: -30 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1838193 MEAN WELL MFM-10-5 AC/DC PSU (print) 5 V DC 2 A 10 W

User & Safety Instructions

User & Safety Instructions 1838193 MEAN WELL MFM-10-5 AC/DC PSU (print) 5 V DC 2 A 10 W

Warranty Terms

Warranty Terms 1838193 MEAN WELL MFM-10-5 AC/DC PSU (print) 5 V DC 2 A 10 W

Description

Mean corrugated represents a new power supply series with high power density: the on-board type series MFM. Compared with the size of the last generation-PM AND NFM-is the size of the new series only one-third, but a wider operating temperature range, a higher efficiency and lower idle power. The design of this series meets the guidelines of the IEC/EN 60601-1 of 3. Version and ANSI/AAMI IT 60601-1, meets the requirements of 2x mop and has a low leakage current (<80 μA). It is approved for medical equipment. The level the BF with direct patient contact. Suitable applications include medical test devices, portable medical devices and medical devices, which require an extremely low standby power consumption, etc.

This text is machine translated.
