Buy MEAN WELL MFM-15-24 SMPSU 24 V DC 0.63 A 15.1 W

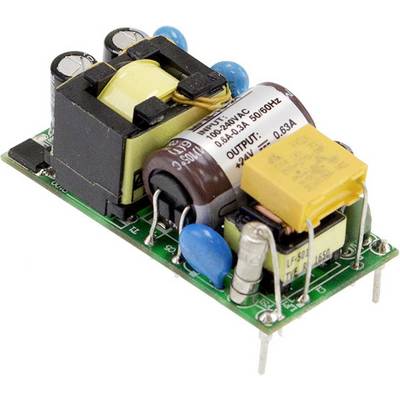

'Electronic circuit board with transformer, capacitors and resistors, typical of voltage converters or power supplies.'

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 10.08 / piece)

€ 10.08

plus VAT.

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL power supply series MFM-15 Medical open-frame (On Board) Single Output Power: 15 W

Output 24 V DC / 0.63 A
Power 15.1 W
Solder pins

Technical specifications

Product type: SMPSU

Input voltage (max.): 264 V AC

Max. output current: 0.63 A

Output current (max.) - rounded: 630 mA

Min. input voltage: 80 V AC

Dim: (L x W x H) 49 x 23.8 x 23 mm

Output voltage (max.): 24 V DC

Connection: Solder pins

: 15.1 W

No. of outputs: 1 x

Type: open

Weight: 28 g

Type: Pulsed

Width: 23.8 mm

Height: 23 mm

Length: 49 mm

Type: MFM-15-24

MTBF: 121000 h

No. of inputs: 1 x

PFC: No

Max. temperature: +85 °C

Min. temperature: -35 °C

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2142617 MEAN WELL MFM-15-24 SMPSU 24 V DC 0.63 A 15.1 W

User & Safety Instructions

User & Safety Instructions 2142617 MEAN WELL MFM-15-24 SMPSU 24 V DC 0.63 A 15.1 W

Warranty Terms

Warranty Terms 2142617 MEAN WELL MFM-15-24 SMPSU 24 V DC 0.63 A 15.1 W

Description

Mean corrugated represents a new power supply series with high power density: the on-board type series MFM. Compared with the size of the last generation-PM AND NFM-is the size of the new series only one-third, but a wider operating temperature range, a higher efficiency and lower idle power. The design of this series meets the guidelines of the IEC/EN 60601-1 of 3. Version and ANSI/AAMI IT 60601-1, meets the requirements of 2x mop and has a low leakage current (less than 80 μA). It is approved for medical equipment. The level the BF with direct patient contact. Suitable applications include medical test devices, portable medical devices and medical devices, which require an extremely low standby power consumption, etc.

This text is machine translated.
