Buy MEAN WELL MFM-20-12 SMPSU 12 V DC 1.8 A 21.6 W

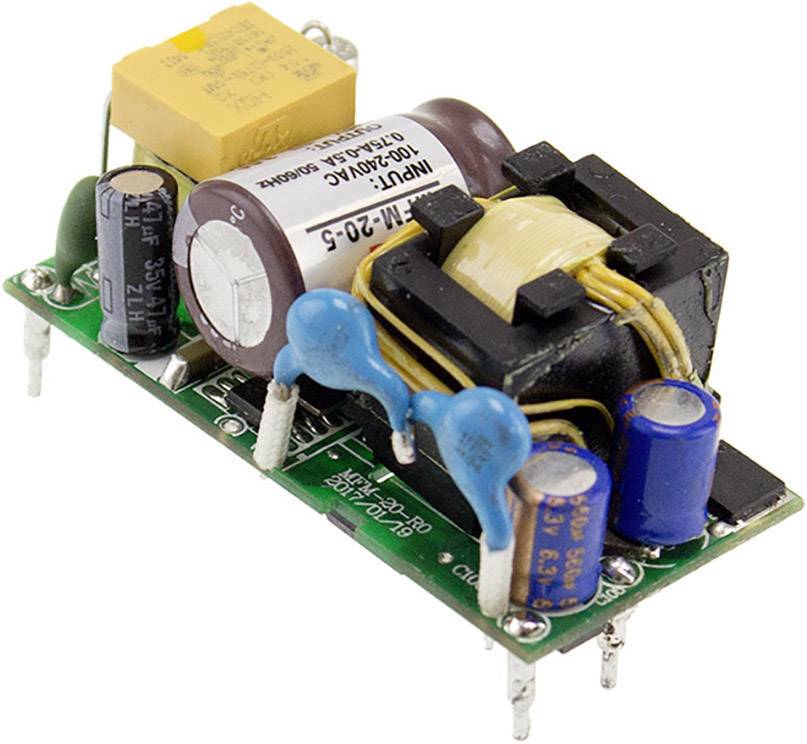

An electronic circuit board with various components such as capacitors, transformers, and resistors, shown from above.

Datasheet (PDF)

Fast track dispatch on Fri, 2 Oct

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 11.76 / piece)

€ 11.76

plus VAT.

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL power supply series MFM-20 Medical open-frame (On Board) Single Output Power: 20 W

Output 12 V DC / 1.8 A
Power 21.6 W
Solder pins

Technical specifications

Product type: SMPSU

Input voltage (max.): 264 V AC

Max. output current: 1.8 A

Output current (max.) - rounded: 1.8 A

Min. input voltage: 80 V AC

Dim: (L x W x H) 49 x 23.8 x 23 mm

Output voltage (max.): 12 V DC

Connection: Solder pins

: 21.6 W

No. of outputs: 1 x

Type: open

Weight: 28 g

PSU features: Adjustable voltage output

Type: Pulsed

Width: 23.8 mm

Height: 23 mm

Length: 49 mm

Type: MFM-20-12

MTBF: 121000 h

No. of inputs: 1 x

PFC: No

Max. temperature: +85 °C

Min. temperature: -35 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2142606 MEAN WELL MFM-20-12 SMPSU 12 V DC 1.8 A 21.6 W

User & Safety Instructions

User & Safety Instructions 2142606 MEAN WELL MFM-20-12 SMPSU 12 V DC 1.8 A 21.6 W

Warranty Terms

Warranty Terms 2142606 MEAN WELL MFM-20-12 SMPSU 12 V DC 1.8 A 21.6 W

Description

Mean corrugated represents a new power supply series with high power density: the on-board type series MFM. Compared with the size of the last generation-PM AND NFM-is the size of the new series only one-third, but a wider operating temperature range, a higher efficiency and lower idle power. The design of this series meets the guidelines of the IEC/EN 60601-1 of 3. Version and ANSI/AAMI IT 60601-1, meets the requirements of 2x mop and has a low leakage current (less than 80 μA). It is approved for medical equipment. The level the BF with direct patient contact. Suitable applications include medical test devices, portable medical devices and medical devices, which require an extremely low standby power consumption, etc.

This text is machine translated.
