Name: MEAN WELL MFM-30-48 AC/DC PSU (print) 48 V DC 630 mA 30.2 W
Brand: MEAN WELL
SKU: 1838002

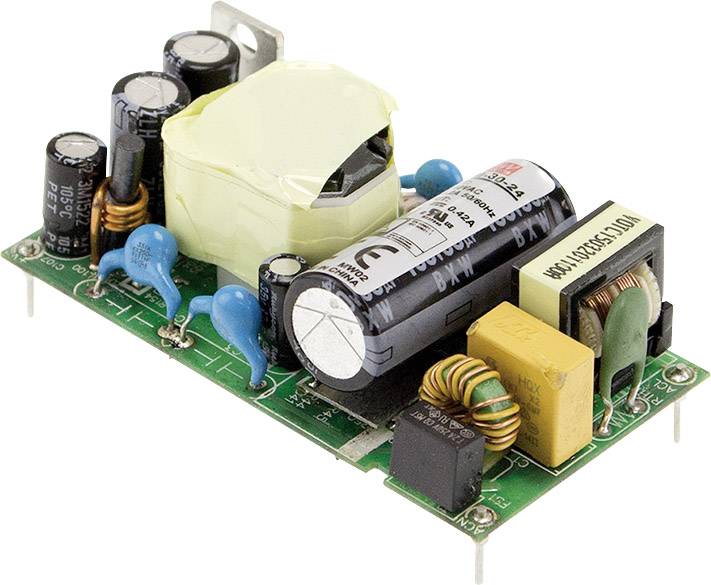

Electronic circuit board with various components such as capacitors, inductors and transformer, mounted on green printed circuit board substrate.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Medical open-frame (On Board) Single Output Power: 30 W

Output 48 V DC / 630 mA
Power 30.2 W
Print, Solder pins

Technical specifications

Product type: AC/DC PSU (print)

Input voltage (max.): 264 V AC

Max. output current: 630 mA

Output current (max.) - rounded: 630 mA

Min. input voltage: 80 V AC

Dim: (L x W x H) 65.5 x 35 x 23 mm

Output voltage (max.): 48 V DC

Connection: Print
Solder pins

: 30.2 W

No. of outputs: 1 x

Type: open

Weight: 53 g

Type: Pulsed

Width: 35 mm

Height: 23 mm

Length: 65.5 mm

Type: MFM-30-48

MTBF: 779000 h

No. of inputs: 1 x

PFC: No

Max. temperature: 85 °C

Min. temperature: -40 °C

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1838002 MEAN WELL MFM-30-48 AC/DC PSU (print) 48 V DC 630 mA 30.2 W

User & Safety Instructions

User & Safety Instructions 1838002 MEAN WELL MFM-30-48 AC/DC PSU (print) 48 V DC 630 mA 30.2 W

Warranty Terms

Warranty Terms 1838002 MEAN WELL MFM-30-48 AC/DC PSU (print) 48 V DC 630 mA 30.2 W

Description

Mean corrugated represents a new power supply series with high power density: the on-board type series MFM. Compared with the size of the last generation-PM AND NFM-is the size of the new series only one-third, but a wider operating temperature range, a higher efficiency and lower idle power. The design of this series meets the guidelines of the IEC/EN 60601-1 of 3. Version and ANSI/AAMI IT 60601-1, meets the requirements of 2x mop and has a low leakage current (<80 μA). It is approved for medical equipment. The level the BF with direct patient contact. Suitable applications include medical test devices, portable medical devices and medical devices, which require an extremely low standby power consumption, etc.

This text is machine translated.
