Buy MEAN WELL MPM-30-3.3ST AC/DC PSU (print) 3.3 V DC 6 A

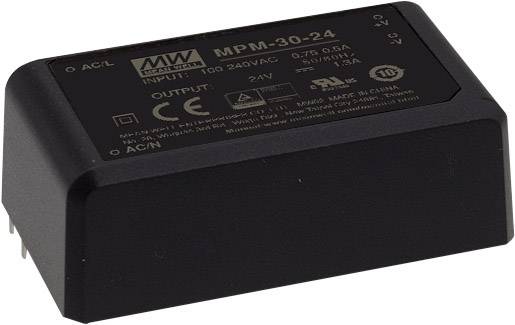

Black power supply module, rectangular shape, inscription: 'Input 100-240V AC, Output 24V'. CE and UKCA logos visible.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Medical Encapsulated Single Output Power: 30 W

Output 3.3 V DC / 6 A
Screw terminal

Technical specifications

Product type: AC/DC PSU (print)

Input voltage (max.): 264 V AC

Max. output current: 6 A

Output current (max.) - rounded: 6 A

Min. input voltage: 80 V AC

Dim: (L x W x H) 91 x 39.5 x 28.5 mm

Output voltage (max.): 3.3 V DC

Connection: Screw terminal

Input frequency: 47-63 Hz

Efficiency to: 82,5 %

Tolerance (output voltage): ±2,0 %

Protection class: II

No. of outputs: 1 x

Type: 1

Output voltage 1: 3.3 V DC

Output current 1: 6 A

Operating temperature (max.): 85 °C

Operating temperature (min.): -40 °C

Weight: 120 g

Insulation voltage: 4000 V AC

Type: Pulsed

Width: 39.5 mm

Height: 28.5 mm

Length: 91 mm

Residual ripple: 80 mVp-p

Type: MPM-30-3.3ST

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1837926 MEAN WELL MPM-30-3.3ST AC/DC PSU (print) 3.3 V DC 6 A

User & Safety Instructions

User & Safety Instructions 1837926 MEAN WELL MPM-30-3.3ST AC/DC PSU (print) 3.3 V DC 6 A

Warranty Terms

Warranty Terms 1837926 MEAN WELL MPM-30-3.3ST AC/DC PSU (print) 3.3 V DC 6 A

Description

Mean corrugated represents a new power supply series with high power density: in closed design for PCB mounting the series MPM. Compared with the size of the last generation-PM AND NFM-is the size of the new series only one-third, but a wider operating temperature range, a higher efficiency and lower idle power. The design of this series meets the guidelines of the IEC/EN 60601-1 of 3. Version and ANSI/AAMI IT 60601-1, meets the requirements of 2x mop and has a low leakage current (<80 μA). It is approved for medical equipment. The level the BF with direct patient contact. Suitable applications include medical test devices, portable medical devices and medical devices, which require an extremely low standby power consumption, etc.
