Name: MEAN WELL MPM-30-48 AC/DC PSU (print) 48 V DC 630 mA
Brand: MEAN WELL
SKU: 1837901

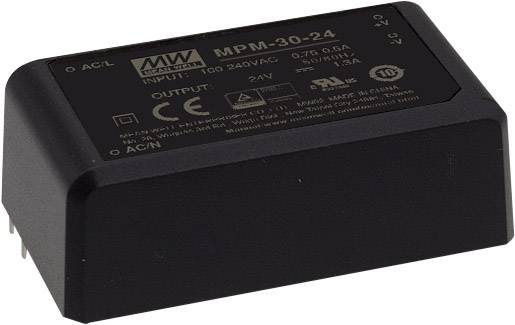

Black power supply with the inscription 'MPM-30-24', input and output voltage and current, along with CE and RoHS symbols.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Medical Encapsulated Single Output Power: 30 W

Output 48 V DC / 630 mA
Solder pins, Print

Technical specifications

Product type: AC/DC PSU (print)

Input voltage (max.): 264 V AC

Max. output current: 630 mA

Output current (max.) - rounded: 630 mA

Min. input voltage: 80 V AC

Dim: (L x W x H) 69.5 x 39 x 24 mm

Output voltage (max.): 48 V DC

Connection: Solder pins
Print

Input frequency: 47-63 Hz

Efficiency to: 91 %

Tolerance (output voltage): ±2,0 %

Protection class: II

No. of outputs: 1 x

Type: 1

Output voltage 1: 48 V DC

Output current 1: 630 mA

Operating temperature (max.): 85 °C

Operating temperature (min.): -40 °C

Weight: 102 g

Insulation voltage: 4000 V AC

Type: Pulsed

Width: 39 mm

Height: 24 mm

Length: 69.5 mm

Residual ripple: 200 mVp-p

Type: MPM-30-48

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1837901 MEAN WELL MPM-30-48 AC/DC PSU (print) 48 V DC 630 mA

User & Safety Instructions

User & Safety Instructions 1837901 MEAN WELL MPM-30-48 AC/DC PSU (print) 48 V DC 630 mA

Warranty Terms

Warranty Terms 1837901 MEAN WELL MPM-30-48 AC/DC PSU (print) 48 V DC 630 mA

Description

Mean corrugated represents a new power supply series with high power density: in closed design for PCB mounting the series MPM. Compared with the size of the last generation-PM AND NFM-is the size of the new series only one-third, but a wider operating temperature range, a higher efficiency and lower idle power. The design of this series meets the guidelines of the IEC/EN 60601-1 of 3. Version and ANSI/AAMI IT 60601-1, meets the requirements of 2x mop and has a low leakage current (<80 μA). It is approved for medical equipment. The level the BF with direct patient contact. Suitable applications include medical test devices, portable medical devices and medical devices, which require an extremely low standby power consumption, etc.

This text is machine translated.
