Name: MEAN WELL MPM-30-5ST AC/DC PSU (print) 5 V DC 6 A
Brand: MEAN WELL
SKU: 1837902

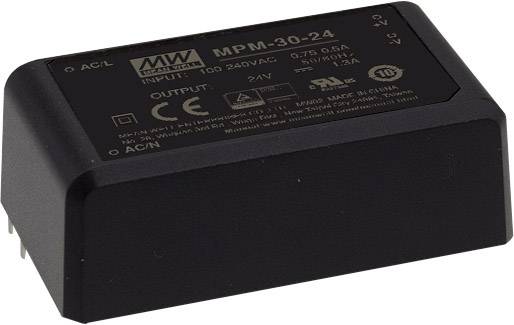

Black, rectangular AC/DC converter with 'MPM-30-24' printed on it, input range of 100-240V AC and output voltage of 24V.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Medical Encapsulated Single Output Power: 30 W

Output 5 V DC / 6 A
Screw terminal

Technical specifications

Product type: AC/DC PSU (print)

Input voltage (max.): 264 V AC

Max. output current: 6 A

Output current (max.) - rounded: 6 A

Min. input voltage: 80 V AC

Dim: (L x W x H) 91 x 39.5 x 28.5 mm

Output voltage (max.): 5 V DC

Connection: Screw terminal

Input frequency: 47-63 Hz

Efficiency to: 86,5 %

Tolerance (output voltage): ±2,0 %

Protection class: II

No. of outputs: 1 x

Type: 1

Output voltage 1: 5 V DC

Output current 1: 6 A

Operating temperature (max.): 85 °C

Operating temperature (min.): -40 °C

Weight: 120 g

Insulation voltage: 4000 V AC

Type: Pulsed

Width: 39.5 mm

Height: 28.5 mm

Length: 91 mm

Residual ripple: 80 mVp-p

Type: MPM-30-5ST

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1837902 MEAN WELL MPM-30-5ST AC/DC PSU (print) 5 V DC 6 A

User & Safety Instructions

User & Safety Instructions 1837902 MEAN WELL MPM-30-5ST AC/DC PSU (print) 5 V DC 6 A

Warranty Terms

Warranty Terms 1837902 MEAN WELL MPM-30-5ST AC/DC PSU (print) 5 V DC 6 A

Description

Mean corrugated represents a new power supply series with high power density: in closed design for PCB mounting the series MPM. Compared with the size of the last generation-PM AND NFM-is the size of the new series only one-third, but a wider operating temperature range, a higher efficiency and lower idle power. The design of this series meets the guidelines of the IEC/EN 60601-1 of 3. Version and ANSI/AAMI IT 60601-1, meets the requirements of 2x mop and has a low leakage current (<80 μA). It is approved for medical equipment. The level the BF with direct patient contact. Suitable applications include medical test devices, portable medical devices and medical devices, which require an extremely low standby power consumption, etc.

This text is machine translated.
