MEAN WELL NCP-3200-24CAN SMPSU 24 V 133 A 3192 W

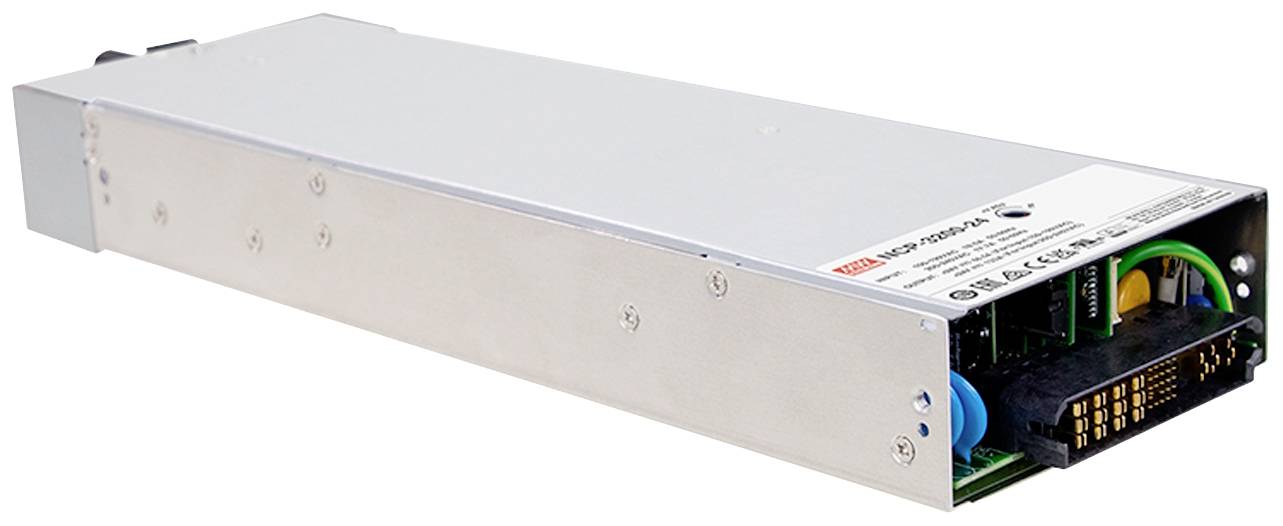

A rectangular, silver power supply unit with ventilation slots and connection ports on one side, marked with technical specifications.

A rectangular, silver power supply unit with ventilation slots and connection ports on one side, marked with technical specifications.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

SNT case 3192W 24V 133A CAN-bus

Output 24 V / 133 A
Power 3192 W
Screw terminal

Technical specifications

Product type: SMPSU

Input voltage (max.): 400 V DC
264 V AC

Max. output current: 133 A

Output current (max.) - rounded: 133 A

Min. input voltage: 127 V DC
90 V AC

Dim: (L x W x H) 325.8 x 107 x 41 mm

Output voltage (max.): 24 V

Connection: Screw terminal

: 3192 W

No. of outputs: 1 x

Type: closed

Weight: 2300 g

Width: 107 mm

Height: 41 mm

Length: 325.8 mm

Type: NCP-3200-24CAN

Max. temperature: +70 °C

Min. temperature: -30 °C
