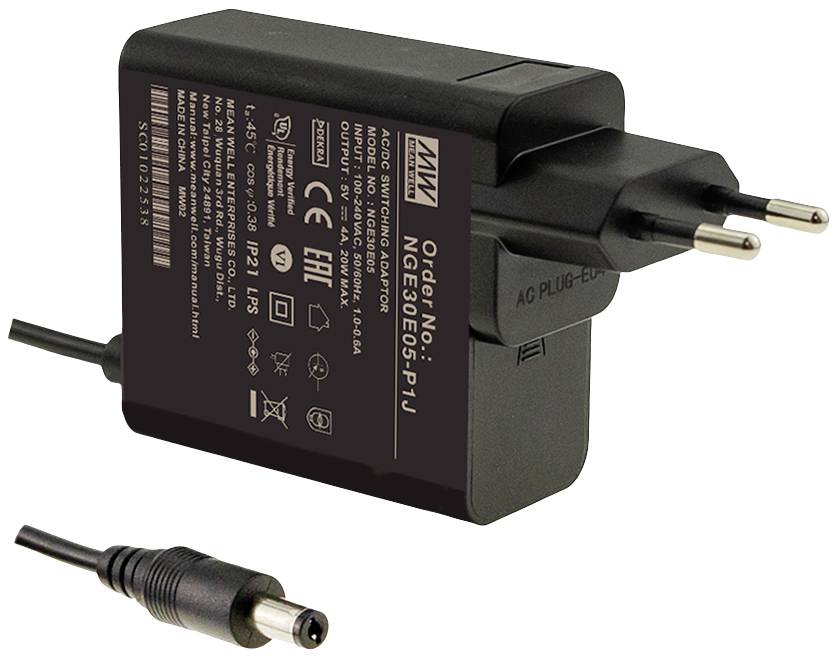

MEAN WELL NGE30E05-P1J Mains PSU (fixed voltage) 5 V DC 4 A 20 W Regulated, Surge protection, incl. EU mains plug
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Only 9 Piece(s) available
Highlights & Details
Mean Well NGE30 plug socket
- Output voltage 5 V DC
- Power 20 W
- Min. Input voltage80 V AC, 113 V DC /max.264 V AC, 370 V DC;5.5/2.1 coaxial connector
Technical specifications
- Series: NGE30
- Application: ITE,Industry,Household,Medical
- Housing: Plug-in power supply
- Dimensions: Length 62 mm
- Dimensions: Width 30 mm
- Dimensions: Height 65 mm
- Weight: 162 g.
- Identification: DEKRA
- MTBF 1078600 h
- Operation maintenance 30,000 h
- Min. Operating temperature -30 °C
- Max. operating temperature: 70 °C
- Storage temperature, min.: -20 °C.
- Storage temperature, max. 85 °C
- Min. Network frequency: 47 Hz
- Network frequency max. 63 Hz
- Min. Input voltage AC 80 V
- Max. Input voltage AC 264 V
- Min. Input voltage DC 113 V.
- Max. Input voltage DC 370 V.
- Input current 0.6 A
- Efficiency level 82.5 %
- Idle power, less than 0.075 W
- Leakage current, max. 0.1 mA
- Inrush current, max. 70 A
- Power factor correction (PFC): 0
- Connector type, input: Power plug
- Number of outputs 1
- Power output: 20 W
- Output voltage 5 V
- Output voltage tolerance -5 - 5 %
- Remaining ripple 100 MVP-p
- Output current: 4 A
- Overload protection 1
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Overtemperature protection 0
- Connection type, output: 5.5*2.1mm hollow plug
- Protection class: II
- INSULATION VOLTAGE I/P-O/P 4,000 V
- APPROVALS CE, EAC, EN, IEC
- Standards (EMC): EN 55011 class B, EN 55032 class B
- STANDARDS (SAFETY): IEC 62368-1, IEC 60335-1-1, IEC 61558-1, IEC 1-60601-16, IEC 60335-1, EN 62368-61558, EN 2-1, EN 61558-1, EN 61558-2-16, EN 60601
- Medical protection classification: 2*MOPP
- REACH-SVHC: No.
- Efficiency (at 10% load): 79 %
- Average efficiency: 82%
- Output voltage selectable 0
- Length of feed line, output 120 cm
- Protection class/IP IP21
- Energy level (EU) 2019/1782 + Level VI
- RoHS R - RoHS compliant
- Product type
Mains PSU (fixed voltage)
- Used at
Mains socket
- Max. output current
4 A
- Output voltage
5 V DC
- Output current (max.) - rounded
4 A
- Output
5.5/2.1 coaxial connector
- PSU features
Regulated
Surge protection
incl. EU mains plug
20 W
- Dim
(L x W x H) 62.0 x 30.0 x 65.0 mm
- Connection
Euro plug
- No. of outputs
1 x
- Input voltage (max.)
264 V AC
370 V DC
- Min. input voltage
80 V AC
113 V DC
- EuP Status
Level VI
- Weight
162.0 g
- Cable length
120 cm
- Width
30.0 mm
- Height
65.0 mm
- Length
62.0 mm
- Type
NGE30E05-P1J
IP21
- MTBF
1078600 h
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-30 °C
- Input voltage
370 V
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3164244 MEAN WELL NGE30E05-P1J Mains PSU (fixed voltage) 5 V DC 4 A 20 W Regulated, Surge protection, incl. EU mains plug
Datasheet 3164244 MEAN WELL NGE30E05-P1J Mains PSU (fixed voltage) 5 V DC 4 A 20 W Regulated, Surge protection, incl. EU mains plug
User & Safety Instructions
User & Safety Instructions 3164244 MEAN WELL NGE30E05-P1J Mains PSU (fixed voltage) 5 V DC 4 A 20 W Regulated, Surge protection, incl. EU mains plug
Warranty Terms
Warranty Terms 3164244 MEAN WELL NGE30E05-P1J Mains PSU (fixed voltage) 5 V DC 4 A 20 W Regulated, Surge protection, incl. EU mains plug
Description
DC compatible, LPS
