Buy MEAN WELL NGE45E48-P1J Mains PSU (fixed voltage) 48 V DC 0.94 A 45.1 W Regulated, incl. EU mains plug, incl. Europe adap

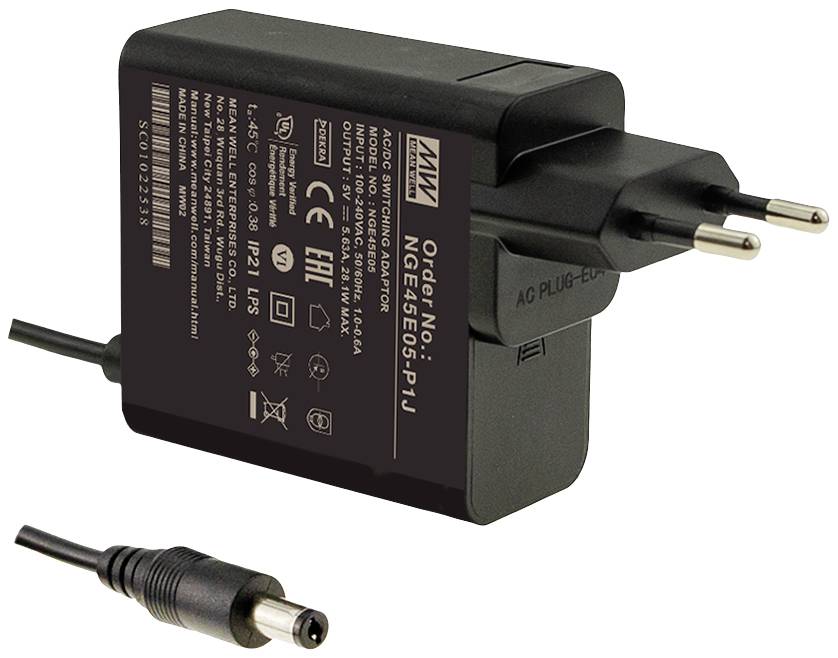

Power supply with European plug and cable. Technical specifications and certifications label visible.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Mean Well NGE45 plug-SNT

Output voltage 48 V DC
Power 45.1 W
Min. Input voltage80 V AC, 113 V DC /max.264 V AC, 370 V DC;5.5/2.1 coaxial connector

Technical specifications

Series: NGE45
Application: ITE,Industry,Household,Medical
Housing: Plug-in power supply
Dimensions: Length 60 mm
Dimensions: Width 30 mm
Dimensions: Height 65 mm
Weight: 211 g
Identification: DEKRA
MTBF 749900 h
Operation maintenance 30,000 h
Min. Operating temperature -30 °C
Max. operating temperature: 70 °C
Storage temperature, min.: -20 °C.
Storage temperature, max. 85 °C
Min. Network frequency: 47 Hz
Network frequency max. 63 Hz
Min. Input voltage AC 80 V
Max. Input voltage AC 264 V
Min. Input voltage DC 113 V.
Max. Input voltage DC 370 V.
Input current 0.6 A
Efficiency 91 %
Idle power, less than 0.075 W
Leakage current, max. 0.1 mA
Inrush current, max. 70 A
Power factor correction (PFC): 0
Connector type, input: Power plug
Number of outputs 1
Power output: 45.1 W
Output voltage 48 V
Output voltage tolerance -2 - 2 %
Remaining ripple 240 MVP-p
Output current 0.94 A
Overload protection 1
Overload protection design: Power on to recover
Short circuit protection 1
Overvoltage protection 1
Overtemperature protection 0
Connection type, output: 5.5*2.1mm hollow plug
Protection class: II
INSULATION VOLTAGE I/P-O/P 4,000 V
APPROVALS CE, EAC, EN, IEC
Standards (EMC): EN 55011 class B, EN 55032 class B
STANDARDS (SAFETY): IEC 62368-1, IEC 60335-1-1, IEC 61558-1, IEC 1-60601-16, IEC 60335-1, EN 62368-61558, EN 2-1, EN 61558-1, EN 61558-2-16, EN 60601
Medical protection classification: 2*MOPP
REACH-SVHC: No.
Efficiency (at 10% load): 85 %
Average efficiency: 87%
Output voltage selectable 0
Length of feed line, output 150 cm
Protection class/IP IP21
Energy level (EU) 2019/1782 + Level VI
RoHS R - RoHS compliant

Product type: Mains PSU (fixed voltage)

Used at: Mains socket

Max. output current: 0.94 A

Output voltage: 48 V DC

Output current (max.) - rounded: 940 mA

Output: 5.5/2.1 coaxial connector

PSU features: Regulated
incl. EU mains plug
incl. Europe adapter
Surge protection

: 45.1 W

Dim: (L x W x H) 60.0 x 30.0 x 65.0 mm

Connection: Euro plug

No. of outputs: 1 x

Input voltage (max.): 264 V AC
370 V DC

Min. input voltage: 80 V AC
113 V DC

EuP Status: Level VI

Weight: 211.0 g

Cable length: 150 cm

Width: 30.0 mm

Height: 65.0 mm

Length: 60.0 mm

Type: NGE45E48-P1J

: IP21

MTBF: 749900 h

Operating temperature (max.): 70 °C

Operating temperature (min.): -30 °C

Input voltage: 370 V
