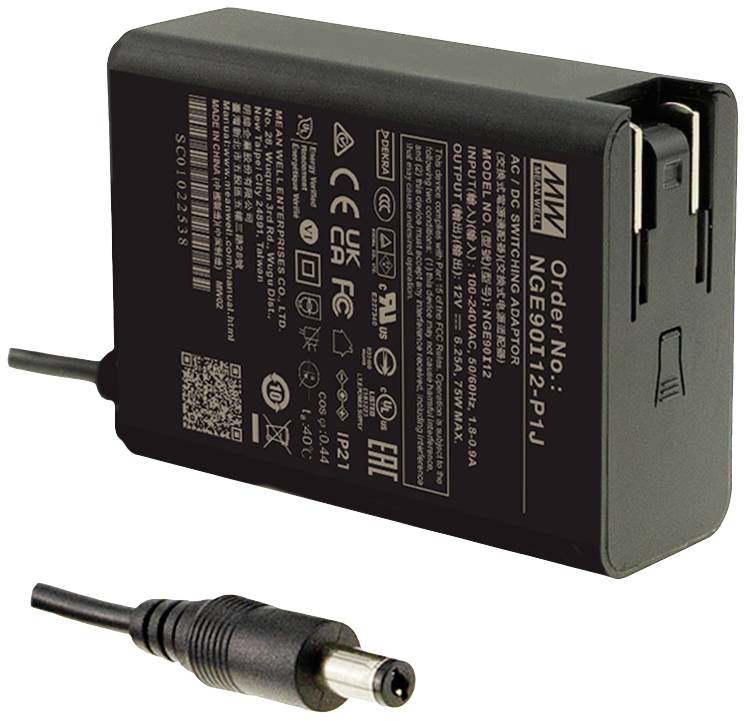

MEAN WELL NGE90I12-P1J Mains PSU (fixed voltage) 12 V DC 6.25 A 75 W Surge protection
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
14-day return policy included
Highlights & Details
Mean Well NGE90 plug SNT
- Output voltage 12 V DC
- Power 75 W
- Min. Input voltage80 V AC, 113 V DC /max.264 V AC, 370 V DC;5.5/2.1 coaxial connector
Technical specifications
- Series: NGE90
- Application: ITE,Industry,Household,Medical
- Housing: Plug-in power supply
- Dimensions: Length 62 mm
- Dimensions: Width 30 mm
- Dimensions: Height 85.5 mm
- Weight: 217 g
- Identification: DEKRA; FCC
- MTBF 605300 h
- Operation maintenance 30,000 h
- Min. Operating temperature -30 °C
- Max. operating temperature: 70 °C
- Storage temperature, min.: -20 °C.
- Storage temperature, max. 85 °C
- Min. Network frequency: 47 Hz
- Network frequency max. 63 Hz
- Min. Input voltage AC 80 V
- Max. Input voltage AC 264 V
- Min. Input voltage DC 113 V.
- Max. Input voltage DC 370 V.
- Input current 0.9 A
- Efficiency 90 %
- Idle power, less than 0.1 W
- Leakage current, max. 0.1 mA
- Inrush current, max. 100 A
- Power factor correction (PFC): 0
- Connector type, input: Adapter
- Number of outputs 1
- Power output: 75 W
- Output voltage 12 V
- Output voltage tolerance -4 - 4 %
- Remaining ripple 120 MVP-p
- Output current: 6.25 A
- Overload protection 1
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Overtemperature protection 0
- Connection type, output: 5.5*2.1mm hollow plug
- Protection class: II
- INSULATION VOLTAGE I/P-O/P 4,000 V
- APPROVALS CE, PSE, UL, AS/NZ, CCC,EAC,UKCA,CSA,BSMI,EN,IEC,RCM
- Standards (EMC): EN 55011 class B, EN 55032 class B
- STANDARDS (SECURITY): ANSI/AAMI ES 60601 60335-1-1 2, IEC 62368 16-1, IEC 60601-1, IEC 62368-62368, IEC 1-1-16, IEC 60335-2, UL 1-61558, EN 61558-1, EN 60601-1, EN 61558-1, EN 61558
- Medical protection classification: 2*MOPP
- REACH-SVHC: No.
- Efficiency (at 10% load): 88 %
- Average efficiency: 90%
- Output voltage selectable 0
- Length of feed line, output 100 cm
- Protection class/IP IP21
- Energy level (EU) 2019/1782 + Level VI
- RoHS R - RoHS compliant
- Product type
Mains PSU (fixed voltage)
- Used at
Mains socket
- Max. output current
6.25 A
- Output voltage
12 V DC
- Output current (max.) - rounded
6.25 A
- Output
5.5/2.1 coaxial connector
- PSU features
Surge protection
75 W
- Dim
(L x W x H) 62.0 x 30.0 x 85.5 mm
- Connection
Quick-release adapter
- No. of outputs
1 x
- Input voltage (max.)
264 V AC
370 V DC
- Min. input voltage
80 V AC
113 V DC
- EuP Status
Level VI
- Weight
217.0 g
- Cable length
100 cm
- Width
30.0 mm
- Height
85.5 mm
- Length
62.0 mm
- Type
NGE90I12-P1J
IP21
- MTBF
605300 h
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-30 °C
- Input voltage
370 V
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3164292 MEAN WELL NGE90I12-P1J Mains PSU (fixed voltage) 12 V DC 6.25 A 75 W Surge protection
Datasheet 3164292 MEAN WELL NGE90I12-P1J Mains PSU (fixed voltage) 12 V DC 6.25 A 75 W Surge protection
User & Safety Instructions
User & Safety Instructions 3164292 MEAN WELL NGE90I12-P1J Mains PSU (fixed voltage) 12 V DC 6.25 A 75 W Surge protection
Warranty Terms
Warranty Terms 3164292 MEAN WELL NGE90I12-P1J Mains PSU (fixed voltage) 12 V DC 6.25 A 75 W Surge protection
Description
DC compatible
This text is machine translated.
This text is machine translated.
Hints
AC-AC-AC adapter must be ordered separately.
