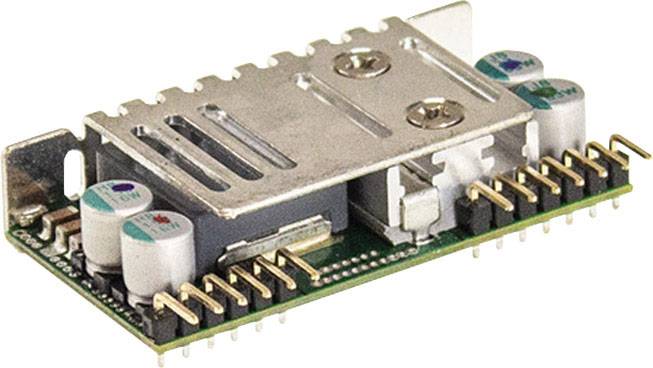

MEAN WELL NID100-24 DC/DC converter 4.2 A 100.8 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Only 10 Piece(s) available
Highlights & Details
Meanwell DC/DC converter series NID100 Open-frame Single Output Non-Isolated Power: 100W
- Open type (open frame)
- Wide input voltage range
- High efficiency up to 97%
- Switching the output voltage on and off via remote signal
- For direct PCB mounting
- Protected against short circuit, overload, overvoltage
- Cooling by free air convection
- Meets the EN55032 ClassA without additional components
- This text is machine translated.
Technical specifications
- Product type
DC/DC converter
- Type
NID100-24
- Min. input voltage
30 V DC
- Input voltage (max.)
53 V DC
- No. of outputs
1 x
- Max. output current
4.2 A
- Output current (max.) - rounded
4.2 A
100.8 W
- Connection
Pins
- PSU features
DC-to-DC converter
- Operating temperature (min.)
-30 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 50.8 x 27.5 x 12 mm
- Height
12 mm
- Length
50.8 mm
- Width
27.5 mm
- Output voltage (max.)
24 V DC
- Weight
35 g
- Content
1 pc(s)
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2176631 MEAN WELL NID100-24 DC/DC converter 4.2 A 100.8 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2176631 MEAN WELL NID100-24 DC/DC converter 4.2 A 100.8 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 2176631 MEAN WELL NID100-24 DC/DC converter 4.2 A 100.8 W No. of outputs: 1 x Content 1 pc(s)
Description
Features
- Open type (open frame)
- Wide input voltage range
- High efficiency up to 97%
- Switching the output voltage on and off via remote signal
- For direct PCB mounting
- Protected against short circuit, overload, overvoltage
- Cooling by free air convection
- Meets the EN55032 ClassA without additional components
