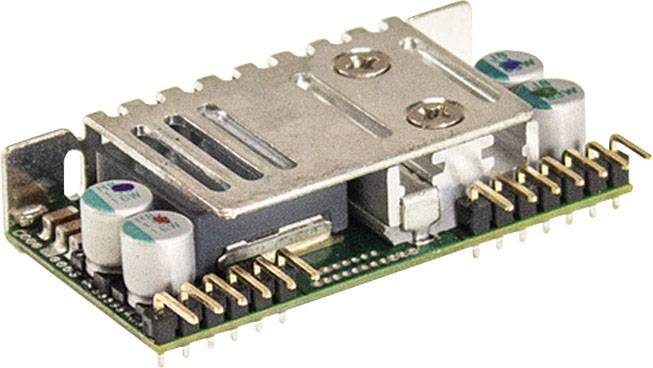

MEAN WELL NID100-5 DC/DC converter 11 A 55 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
Only 8 Piece(s) available
Highlights & Details
Meanwell DC/DC converter series NID100 Open-frame Single Output Non-Isolated Power: 100W
- Open type (open frame)
- Wide input voltage range
- High efficiency up to 97%
- Switching the output voltage on and off via remote signal
- For direct PCB mounting
- Protected against short circuit, overload, overvoltage
- Cooling by free air convection
- Meets the EN55032 ClassA without additional components
- This text is machine translated.
Technical specifications
- Product type
DC/DC converter
- Type
NID100-5
- Min. input voltage
10.5 V DC
- Input voltage (max.)
53 V DC
- No. of outputs
1 x
- Max. output current
11 A
- Output current (max.) - rounded
11 A
- Efficiency (max.)
93 %
55 W
- Connection
Pins
- PSU features
DC-to-DC converter
- Operating temperature (min.)
-30 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 50.8 x 27.5 x 12 mm
- Height
12 mm
- Length
50.8 mm
- Width
27.5 mm
- Output voltage (max.)
5 V DC
- Weight
35 g
- Content
1 pc(s)
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2176637 MEAN WELL NID100-5 DC/DC converter 11 A 55 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2176637 MEAN WELL NID100-5 DC/DC converter 11 A 55 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 2176637 MEAN WELL NID100-5 DC/DC converter 11 A 55 W No. of outputs: 1 x Content 1 pc(s)
Description
Features
- Open type (open frame)
- Wide input voltage range
- High efficiency up to 97%
- Switching the output voltage on and off via remote signal
- For direct PCB mounting
- Protected against short circuit, overload, overvoltage
- Cooling by free air convection
- Meets the EN55032 ClassA without additional components
