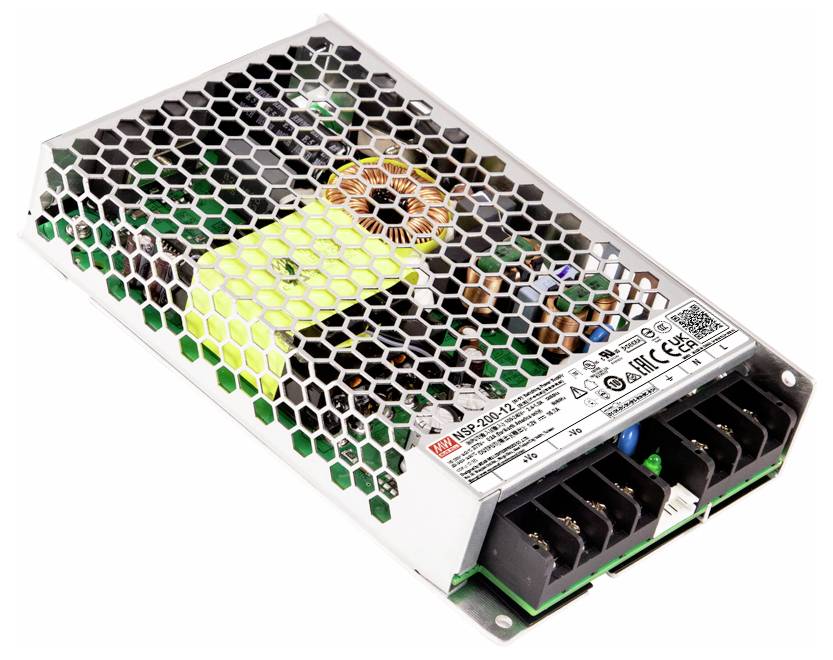

MEAN WELL NSP-200-12 AC/DC industrial PSU module 200.4 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mean Well AC/DC- Industrial power supply closed metal 200.4W 12V 16.7A 2*MOPP
- Output /
- Power 200.4 W
Technical specifications
- INSULATION VOLTAGE I/P-O/P 4,200 V
- INSULATION VOLTAGE I/P-FG 2,100 V
- INSULATION VOLTAGE O/P-FG 1,500 V
- Product type
AC/DC industrial PSU module
- Input voltage (max.)
305 V DC
431 V DC
- Min. input voltage
85 V AC
120 V AC
- Dim
(L x W x H) 159 x 97 x 30 mm
200.4 W
- Input frequency
47 Hz - 63 Hz
- Efficiency to
93.5 %
- Protection class
I
- Output voltage 1
12 V
- Output current 1
16.700 A
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
- Operating temperature
-40 °C - +85 °C
- Weight
500 g
- Width
97 mm
- Height
30 mm
- Length
159 mm
- Type
NSP-200-12
Documents & Downloads
Datasheet
Datasheet 3557974 MEAN WELL NSP-200-12 AC/DC industrial PSU module 200.4 W
User & Safety Instructions
User & Safety Instructions 3557974 MEAN WELL NSP-200-12 AC/DC industrial PSU module 200.4 W
Description
The NSP-200 series is a 200 W AC/DC-power supply with PFC-function, which is designed for high reliability and is suitable for different industries. Key features include: Compact size (159*97*30 mm) for improved space utilization in system installations, ultra-wide input range of 85-305 VAC for global compatibility, up to 94.5% efficiency and low standby power consumption (<0.3-0.5 W depending on model) for energy savings and CO2 reduction, constant current design with 200% peak performance, fanless design, large operating temperature range from -40 to +85 °C (+60 °C at full load), OVCIII compliance, integrated remote control/remote measurement/DC OK signal, internal PCB coating, comprehensive safeguards, Certifications for multiple safety standards, including 62368-1, 60601-1, 61558-1, 60335-1, 62477-1 and 61010-1 plus 2 X MOPP compliance and extremely low leakage current (<350µA).
This text is machine translated.
This text is machine translated.
Hints
These power supplies are intended for installation in terminals.
