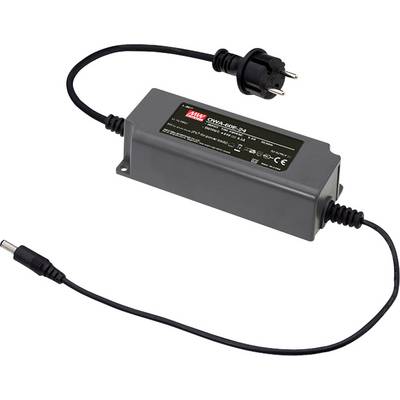

MEAN WELL OWA-60E-24 Bench PSU (fixed voltage) 24 V DC 2.5 A 60 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Bench PSU (fixed voltage)
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
- Output
5.5/2.1 coaxial connector
- Output voltage
24 V DC
- Input voltage
90 V AC
264 V AC
- No. of outputs
1 x
- Inputs
1
- Weight
639 g
60 W
- Type
Synchronised
- Width
100 mm
- Height
50 mm
- Length
220 mm
- Type
OWA-60E-24
- Input voltage (max.)
264 V AC
- Min. input voltage
90 V AC
- Max. power
60 W
- No. of inputs
1 x
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1439266 MEAN WELL OWA-60E-24 Bench PSU (fixed voltage) 24 V DC 2.5 A 60 W
User & Safety Instructions
User & Safety Instructions 1439266 MEAN WELL OWA-60E-24 Bench PSU (fixed voltage) 24 V DC 2.5 A 60 W
Information
Information 1439266 MEAN WELL OWA-60E-24 Bench PSU (fixed voltage) 24 V DC 2.5 A 60 W
Information 1439266 MEAN WELL OWA-60E-24 Bench PSU (fixed voltage) 24 V DC 2.5 A 60 W
Warranty Terms
Warranty Terms 1439266 MEAN WELL OWA-60E-24 Bench PSU (fixed voltage) 24 V DC 2.5 A 60 W
Description
Desktop - switching power supply, corresponds to the energy saving directive ErP. It serves as a power supply for applications in consumer electronics, telecommunications, office equipment and industrial applications.
Features
- Desktop switching power supply
- plastic enclosure IP67
- universal input
- protections: short circuit/over load/over voltage
- insulation class II
- low no load power consumption
