MEAN WELL PHP-3500-115 SMPSU 115 V 26.3 A 3500 W

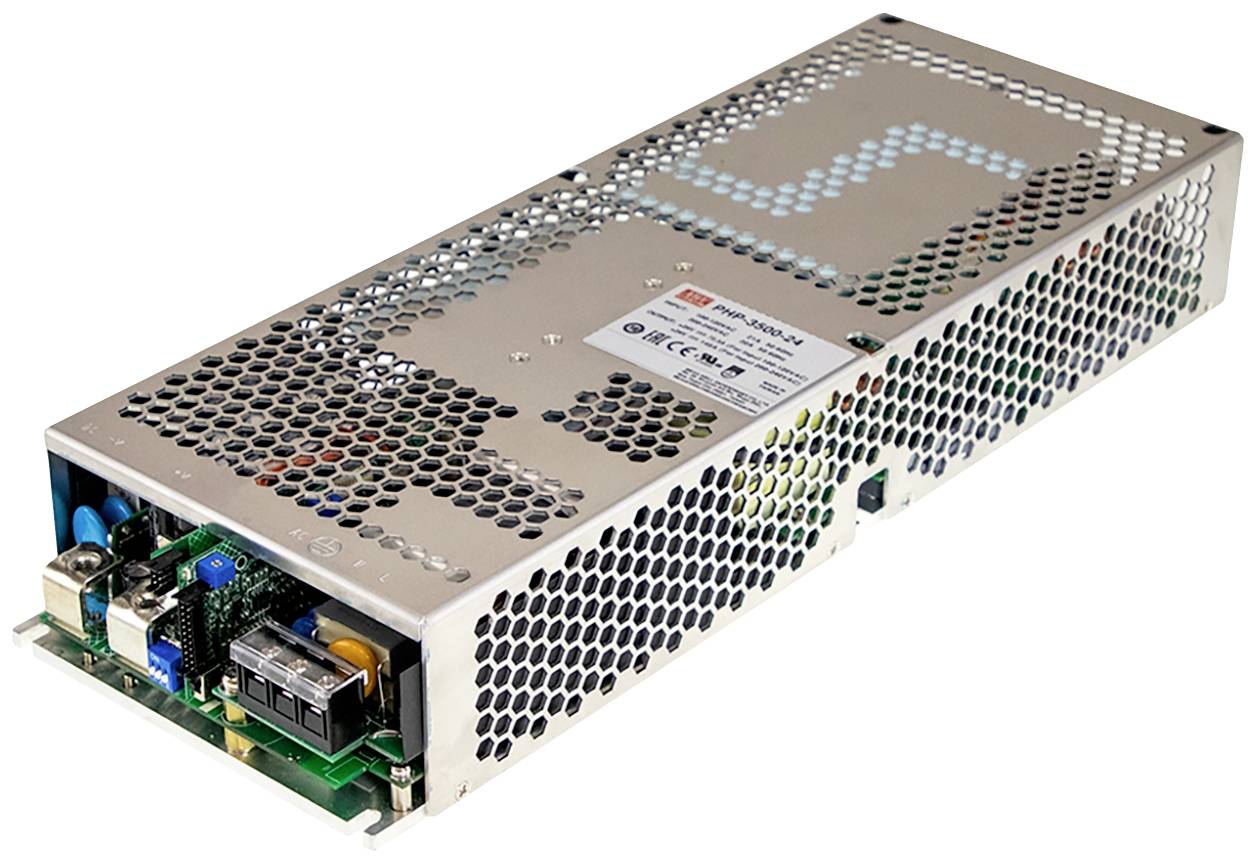

Power supply unit in a metal enclosure with ventilation slots and visible electronic components on a circuit board.

Power supply unit in a metal enclosure with ventilation slots and visible electronic components on a circuit board.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

SNT CASE 2898 W 115V 26.3A

Output 115 V / 26.3 A
Power 3500 W
Screw terminal

Technical specifications

Product type: SMPSU

Input voltage (max.): 370 V DC
264 V AC

Max. output current: 26.3 A

Output current (max.) - rounded: 26.3 A

Min. input voltage: 127 V DC
90 V AC

Dim: (L x W x H) 380 x 141.4 x 60 mm

Output voltage (max.): 115 V

Connection: Screw terminal

: 3500 W

No. of outputs: 1 x

Type: closed

Weight: 4500 g

Width: 141.4 mm

Height: 60 mm

Length: 380 mm

Type: PHP-3500-115

Max. temperature: +70 °C

Min. temperature: -30 °C

Compliance & Certifications

Certified by EU Garan
