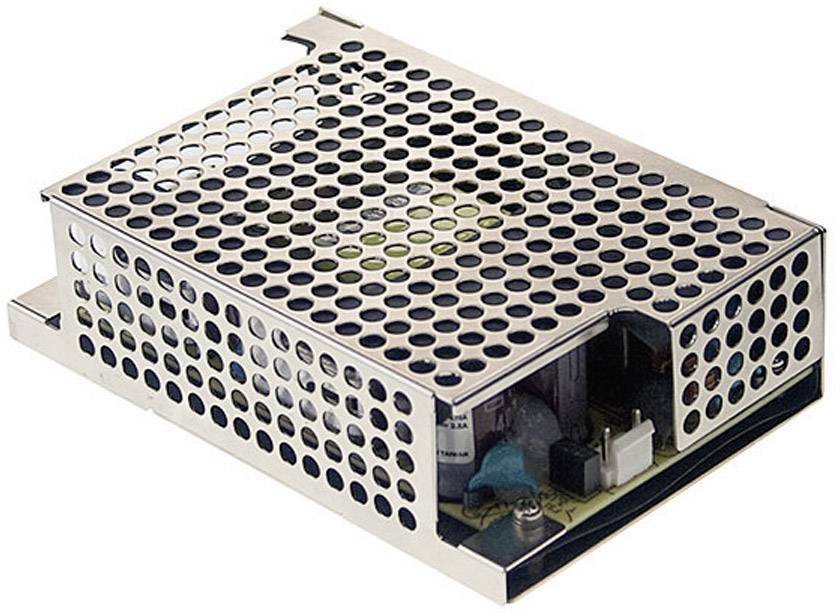

MEAN WELL PSC-100A-C SMPSU 13.8 V DC 4.75 A 100 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 39.49 / piece)
€ 39.49
plus VAT.
Only 9 Piece(s) available
Highlights & Details
Built-in power supply with integrated battery charger
- Wide-range input
- With battery charging function
- 13.8 V DC / 4.75 A
- 13.8 V DC / 2.5 A
- 100 W
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
4.75 A
- Output current (max.) - rounded
4.75 A
- Min. input voltage
90 V AC
- Dim
(L x W x H) 127 x 76.2 x 31 mm
- Output voltage (max.)
13.8 V DC
- Connection
Screw terminal
100 W
- No. of outputs
2 x
- Output voltage 1
13.8 V DC
- Output voltage 2
13.8 V DC
- Output current 1
4.75 A
- Output current 2
2.5 A
- Type
closed
- Weight
230 g
- Type
Switched Mode
- Width
76.2 mm
- Height
31 mm
- Length
127 mm
- Type
PSC-100A-C
- Output current 2 (max.)
2.5 A
- Output voltage 2 (max.)
13.8 V DC
100 W
- Inputs
1
- Input voltage
90 - 264 V/AC 127 - 370 V DC
Documents & Downloads
Datasheet
Datasheet 514605 MEAN WELL PSC-100A-C SMPSU 13.8 V DC 4.75 A 100 W
User & Safety Instructions
User & Safety Instructions 514605 MEAN WELL PSC-100A-C SMPSU 13.8 V DC 4.75 A 100 W
Information
Information 514605 MEAN WELL PSC-100A-C SMPSU 13.8 V DC 4.75 A 100 W
Warranty Terms
Warranty Terms 514605 MEAN WELL PSC-100A-C SMPSU 13.8 V DC 4.75 A 100 W
Description
The power supply provides a connected 12 V-device with fixed voltage. Simultaneously, a connected lead-acid or lead gel battery can be charged with the device. The four holes can be used to attach it to a base plate.
Features
- Protection against polarity reversal, short circuit, overload and voltage
- Convection cooling.
Scope of delivery
- PSC-100A-C power supply
- User manual.
