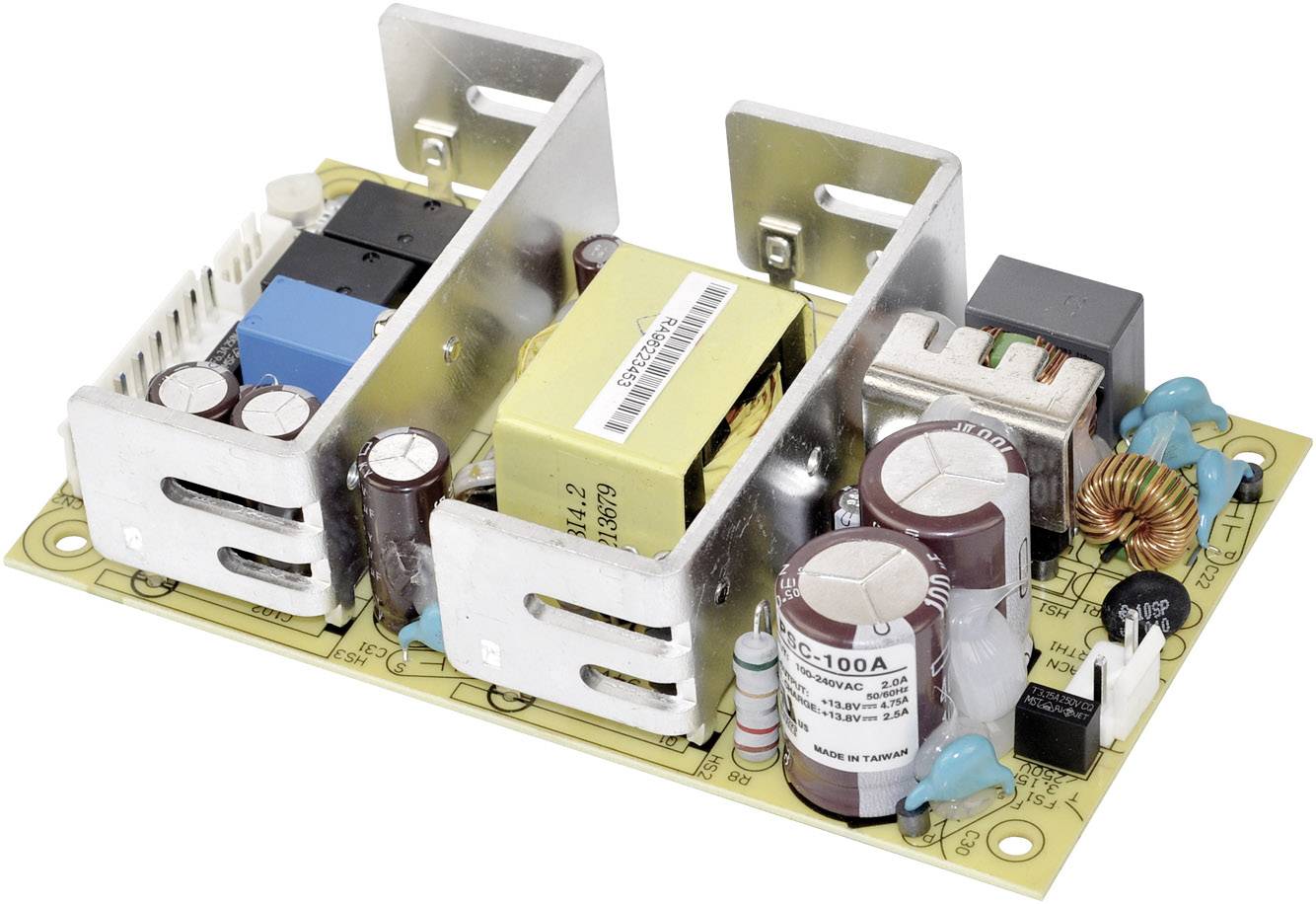

MEAN WELL PSC-100A SMPSU 13.8 V DC 7 A 100 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 36.13 / piece)
€ 36.13
plus VAT.
14-day return policy included
Highlights & Details
Switching power supply case
- Wide-range input
- With battery charging function
- /
- /
- 100 W
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
7 A
- Output current (max.) - rounded
7 A
- Min. input voltage
90 V AC
- Dim
(L x W x H) 127 x 76.2 x 31 mm
- Output voltage (max.)
13.8 V DC
- Connection
Pin strip for nylon crimp connectors
100 W
- No. of outputs
2 x
- Type
closed
- Weight
230 g
- Type
Switched Mode
- Width
76.2 mm
- Height
31 mm
- Length
127 mm
- Type
PSC-100A
- Output current 2 (max.)
2.5 A
- Output voltage 2 (max.)
27.6 V DC
- No. of inputs
1 x
100 W
- Output voltage
13.8/13.8 V/DC
- Output current (details)
7/2.5 A
- Inputs
1
- Input voltage
90 - 264 V/AC 127 - 370 V DC
Documents & Downloads
Datasheet
Datasheet 1292893 MEAN WELL PSC-100A SMPSU 13.8 V DC 7 A 100 W
User & Safety Instructions
User & Safety Instructions 1292893 MEAN WELL PSC-100A SMPSU 13.8 V DC 7 A 100 W
Information
Information 1292893 MEAN WELL PSC-100A SMPSU 13.8 V DC 7 A 100 W
Warranty Terms
Warranty Terms 1292893 MEAN WELL PSC-100A SMPSU 13.8 V DC 7 A 100 W
Description
Open frame · Universal input · Overload protection, pulsing hiccup shutdown, auto recovery · Protections: short circuit/over load/over voltage · Battery low protection · Power fail signal · Battery low signal
Features
- Protection against polarity reversal, short circuit, overload and voltage
- Convection cooling.
